Actual service-call examples with photos, diagnosis, repair, and result
Real appliance repair examples from service calls in Fort Myers, Cape Coral, Lehigh Acres, Estero, Bonita Springs, Naples, and nearby Southwest Florida communities. Each case shows the actual problem, diagnosis, repair, and result.
Customer names, full addresses, serial numbers, and private scheduling details are intentionally omitted.
Real Service CallsActual Repair PhotosCustomer Privacy ProtectedSouthwest Florida Service Area
Use the filters to narrow the full archive by city, appliance, or brand. The page stays on one canonical URL while each case keeps its direct anchor link.

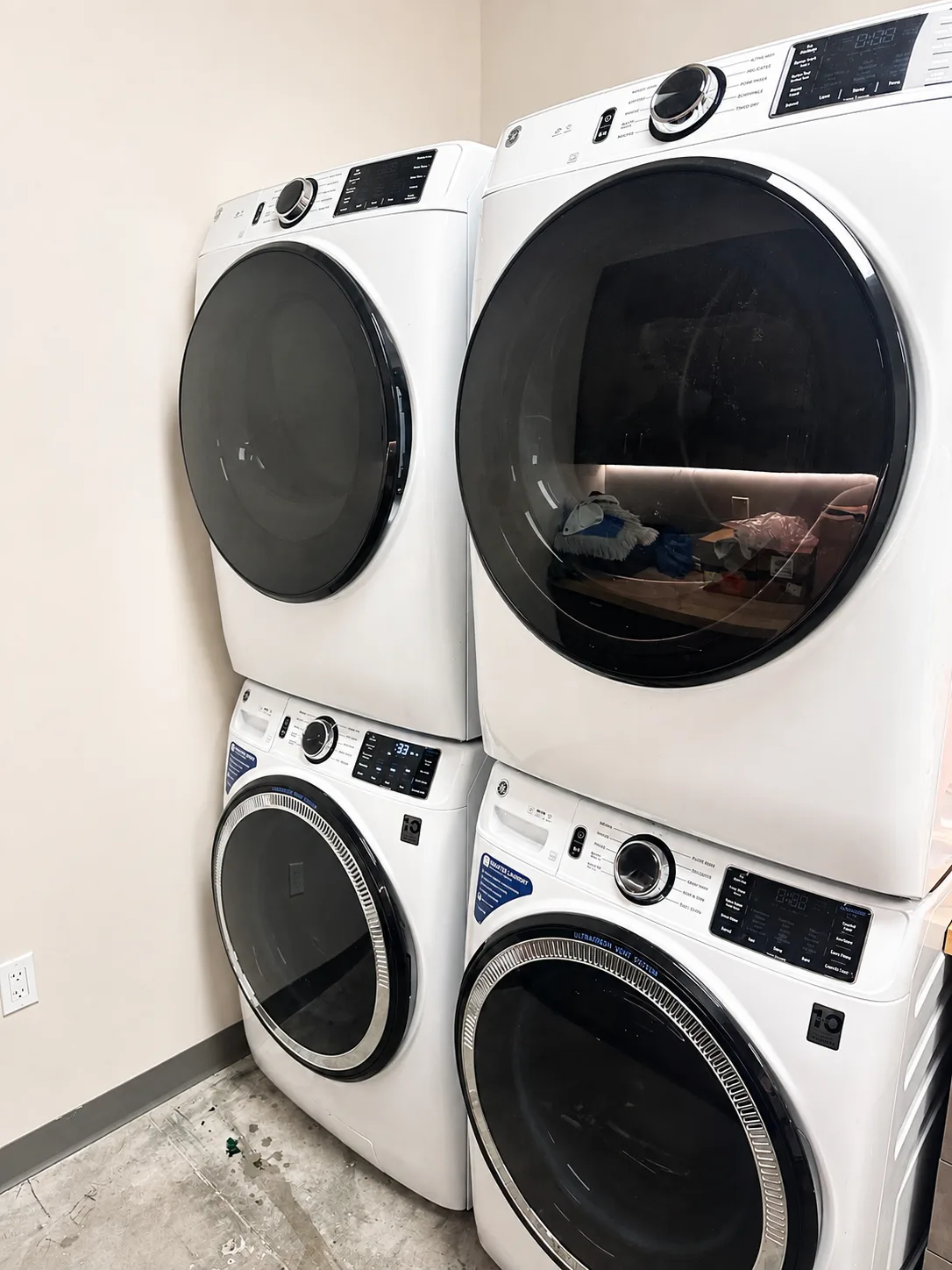

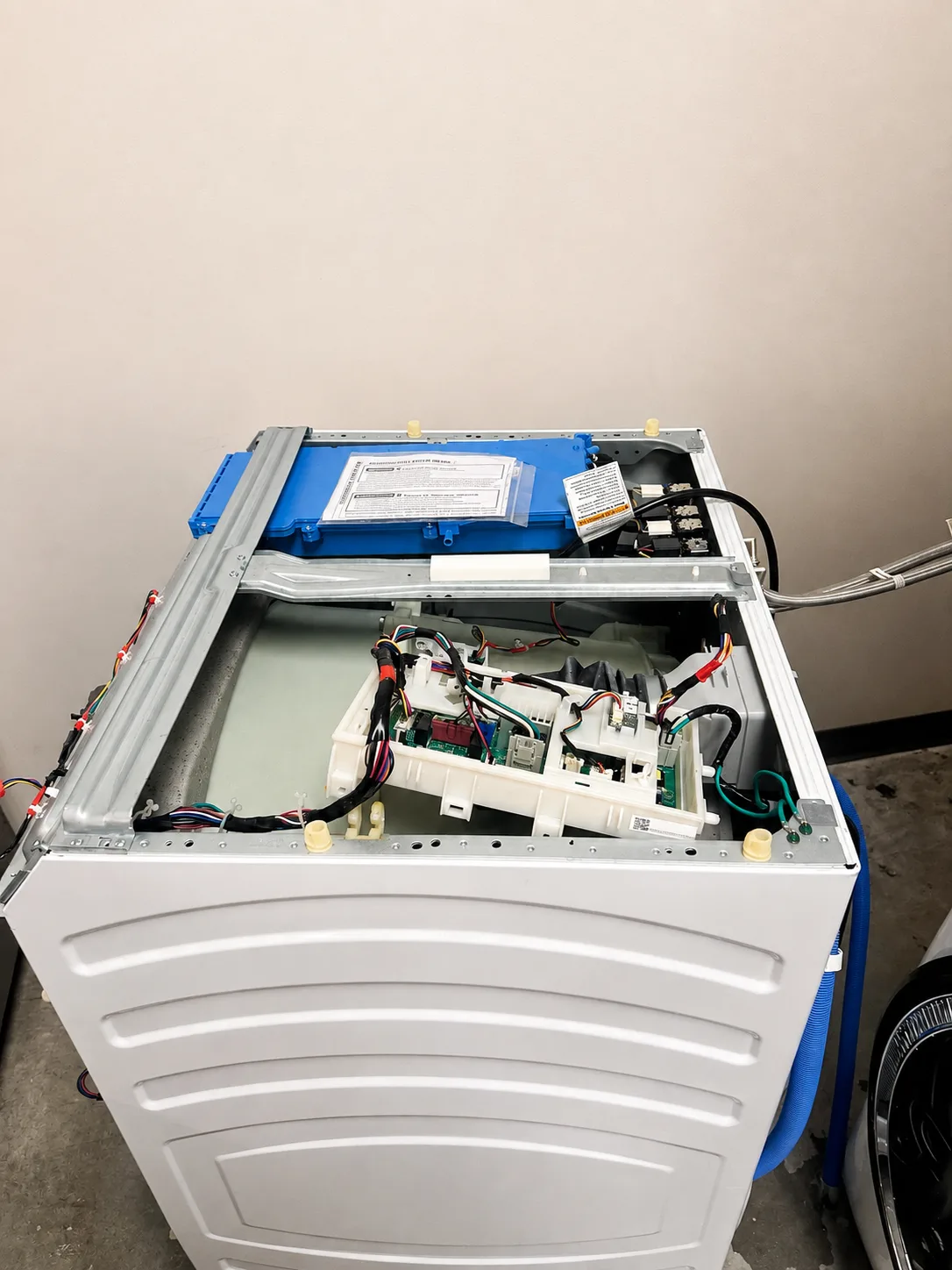

Estero, FL · Commercial Golf Club · GE Washer · GFW550SSN5WW

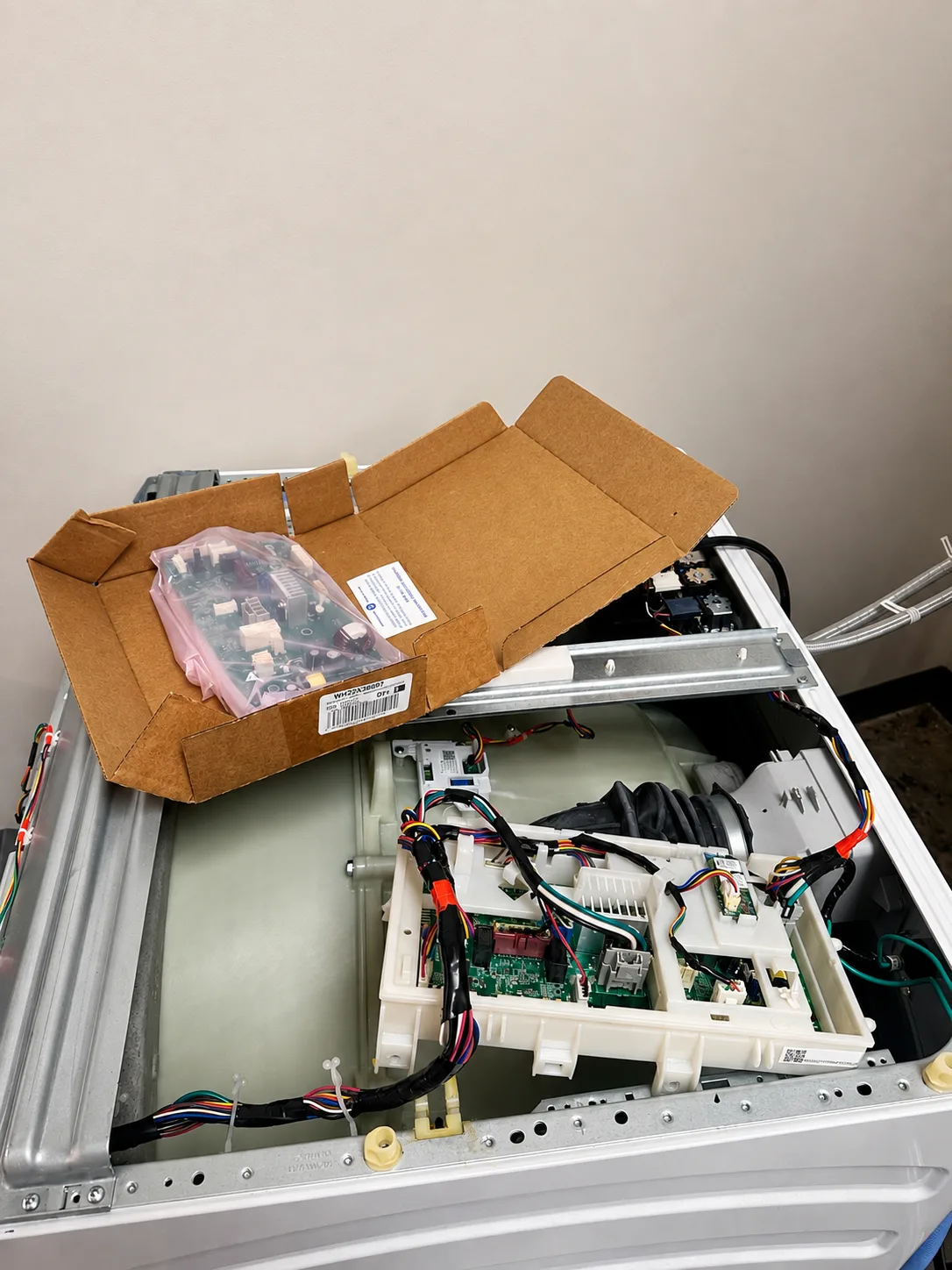

Main control board replacement · GE WH22X38697
Repair
The failed main control board was replaced with GE part WH22X38697.
Result
After the control board replacement, the washer drained normally and operated correctly during testing.
Customer complaint
The washer was not draining properly.
Diagnosis
The drain system was checked and the drain pump itself was not the source of the failure. Further testing showed that the main control board was not properly controlling the drain operation.
Repair completed
The failed main control board was replaced with GE part WH22X38697.
Result
After the control board replacement, the washer drained normally and operated correctly during testing.

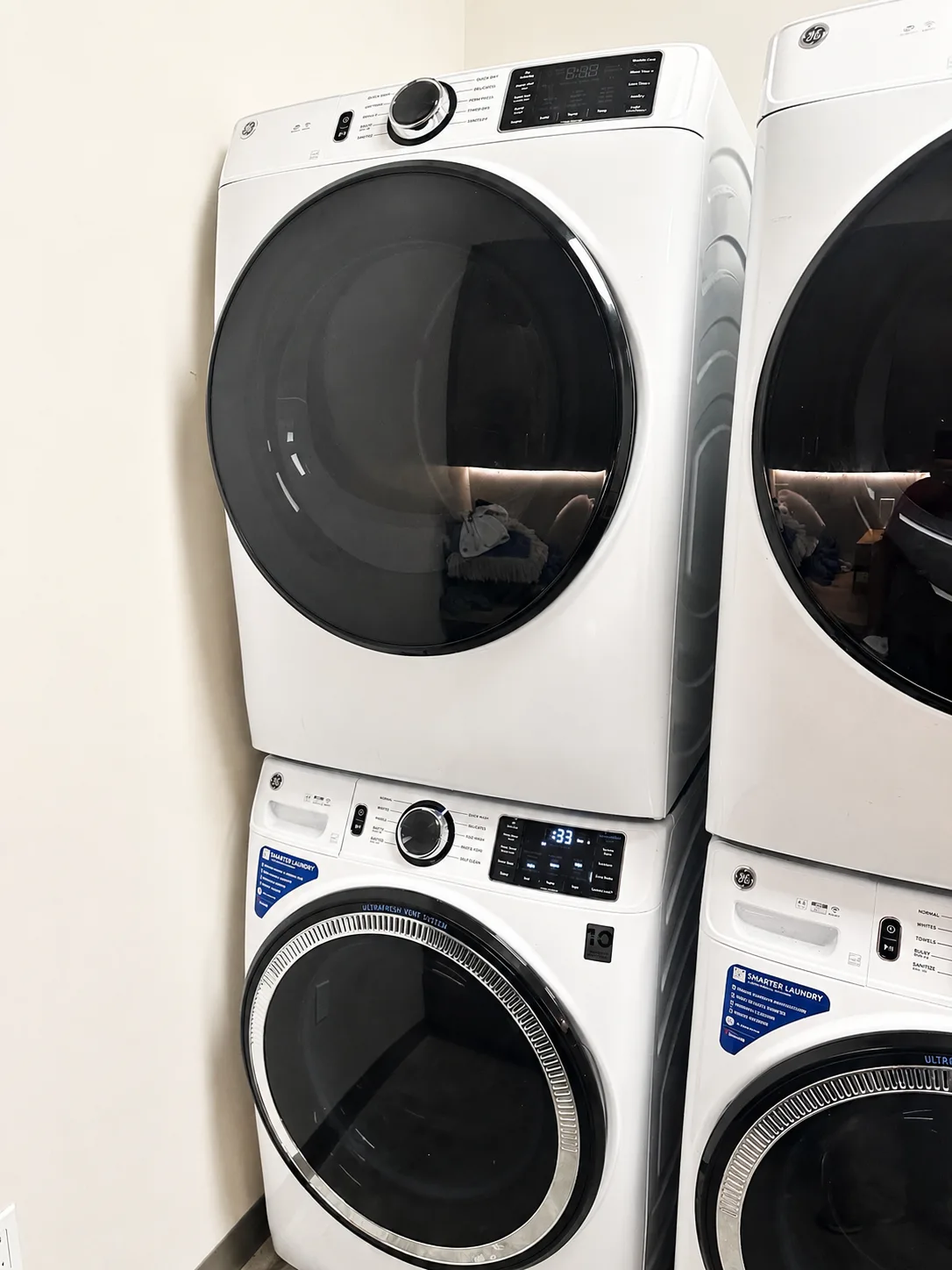

GE Washer / Commercial Service CallMain Control Board DiagnosisReplacement Control Board WH22X38697

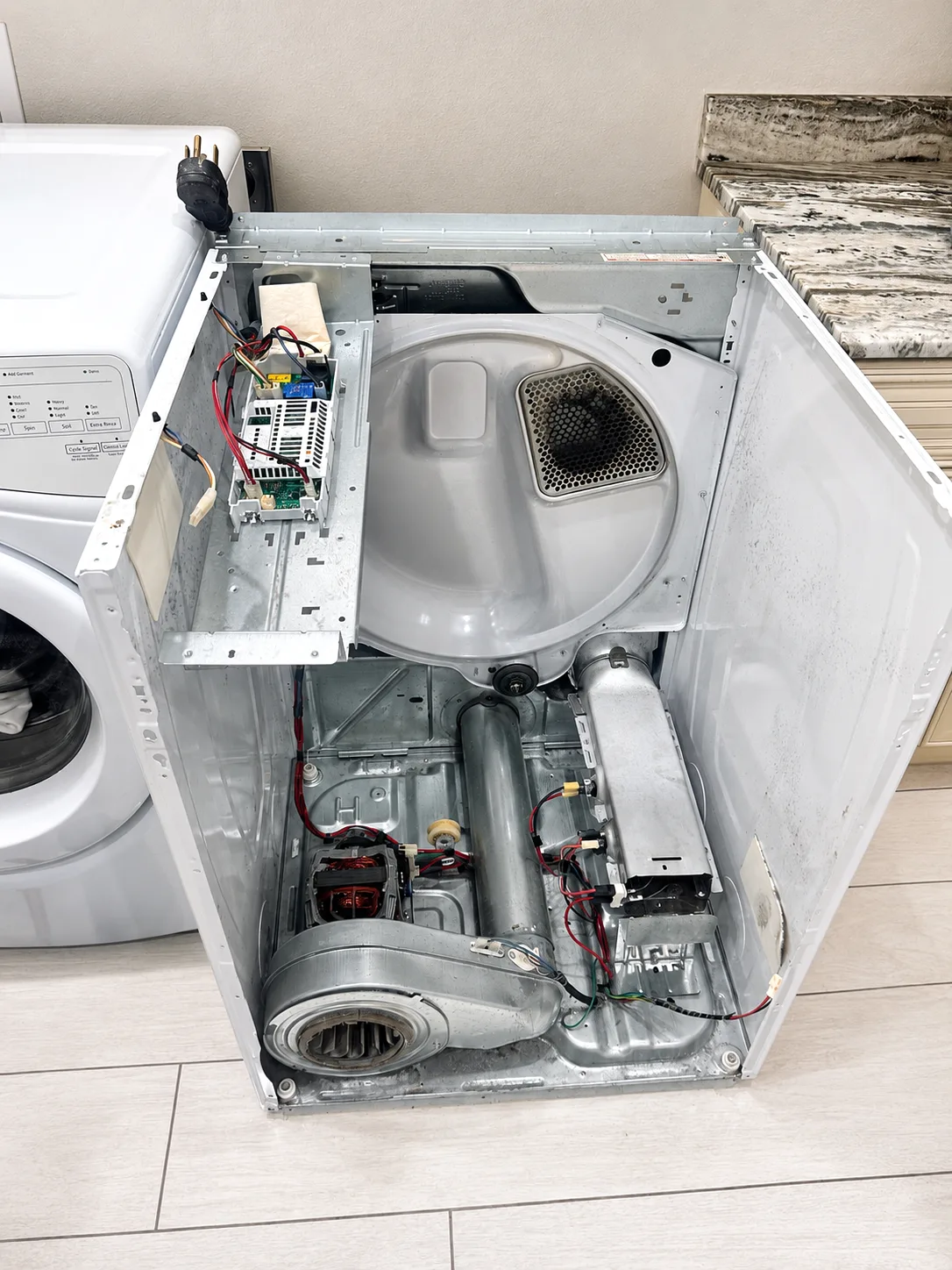

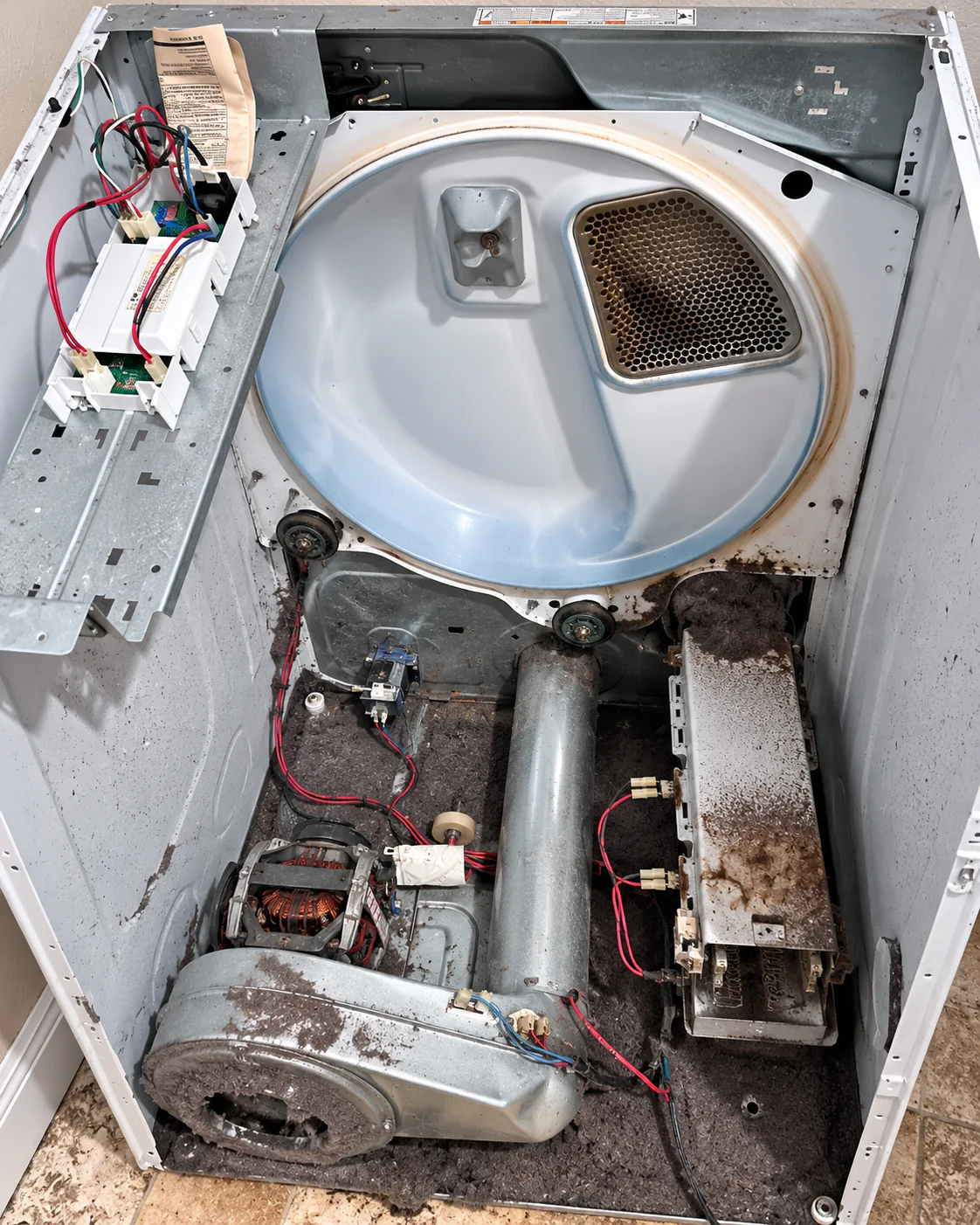

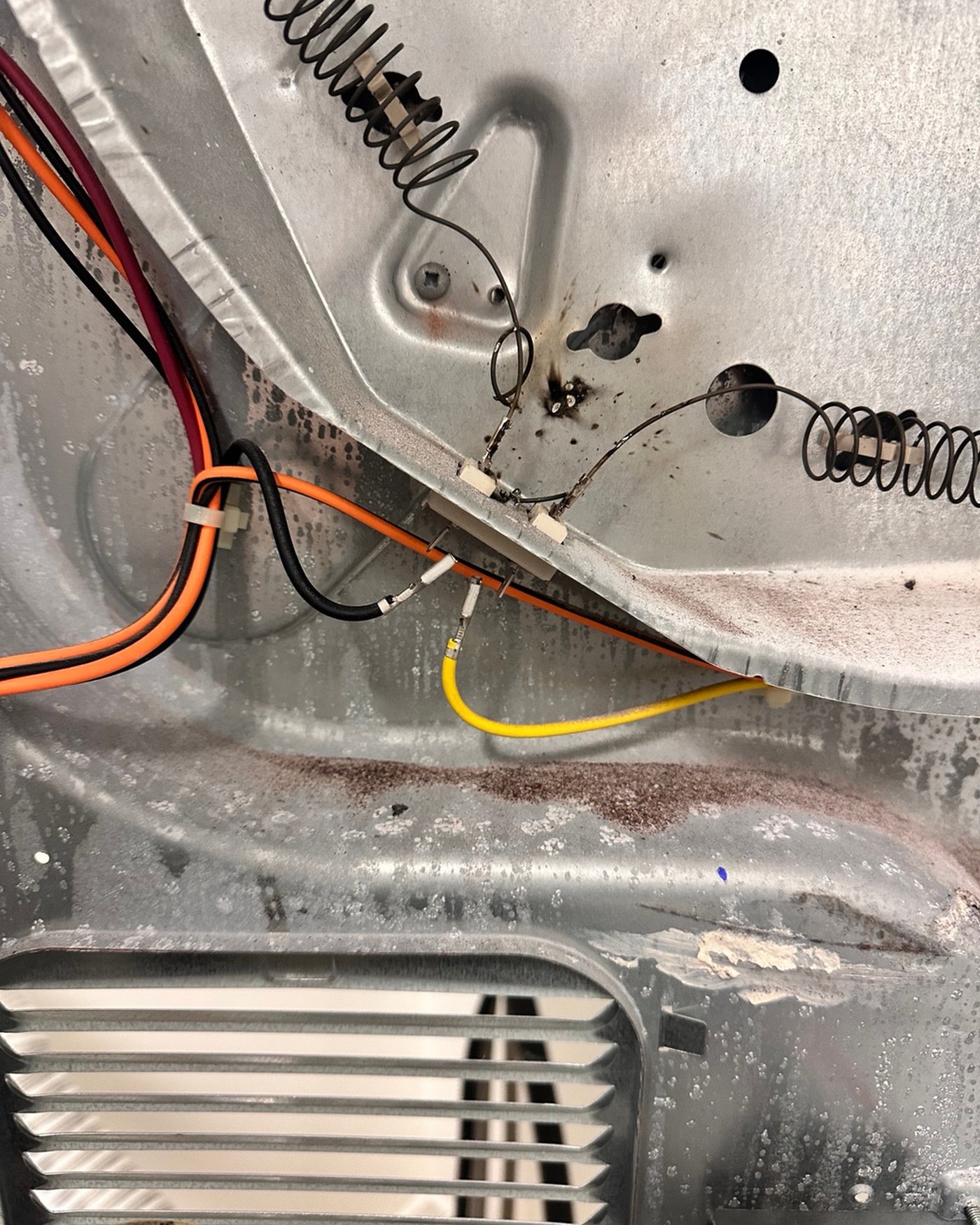

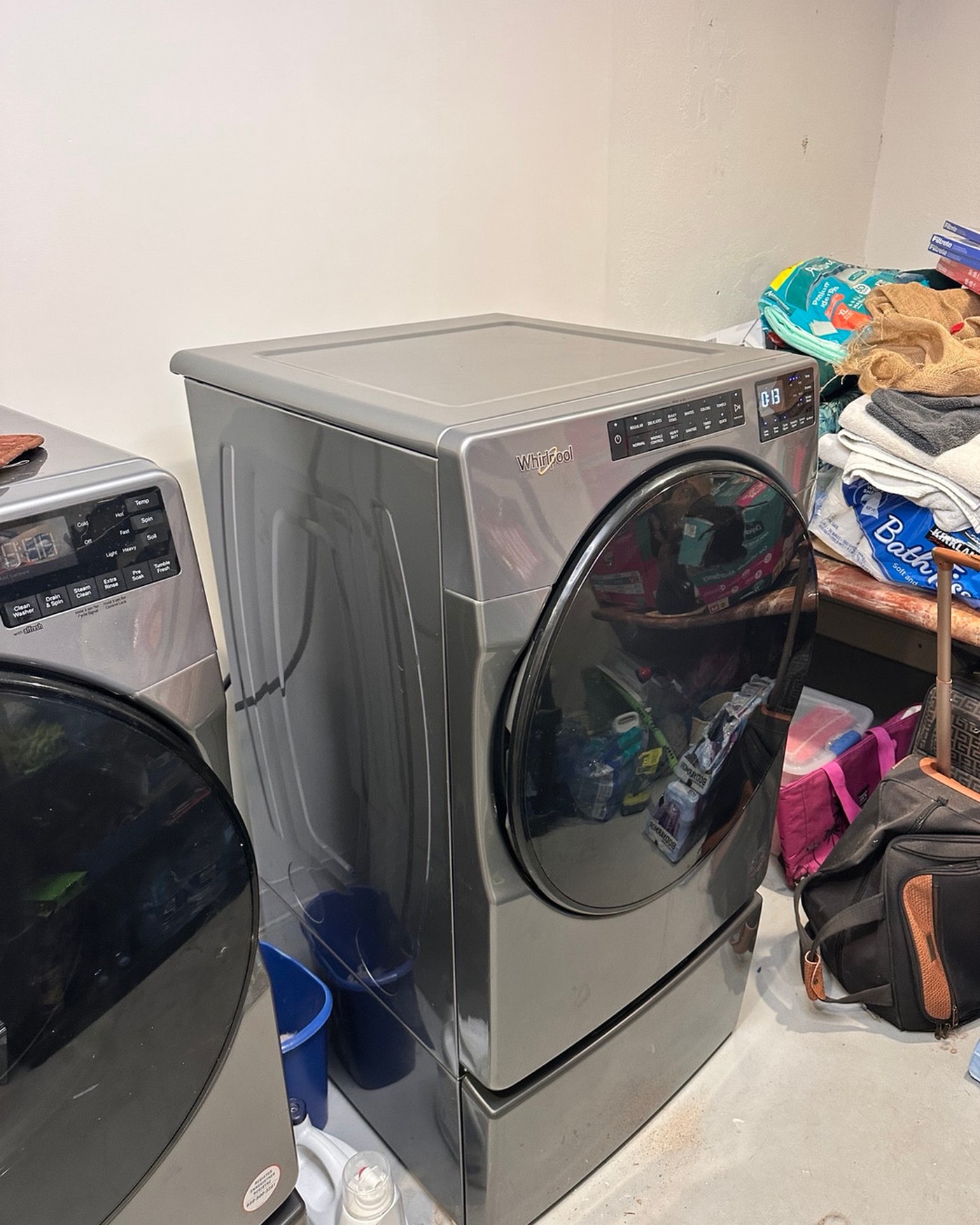

Cape Coral, FLDryerWhirlpool / WED75HEFW0Electric dryer no-heat service callRepair Completed
Heating element replacement · Internal lint cleaning
Repair
The failed heating element was replaced, and the interior of the dryer was thoroughly cleaned to remove accumulated lint.
Result

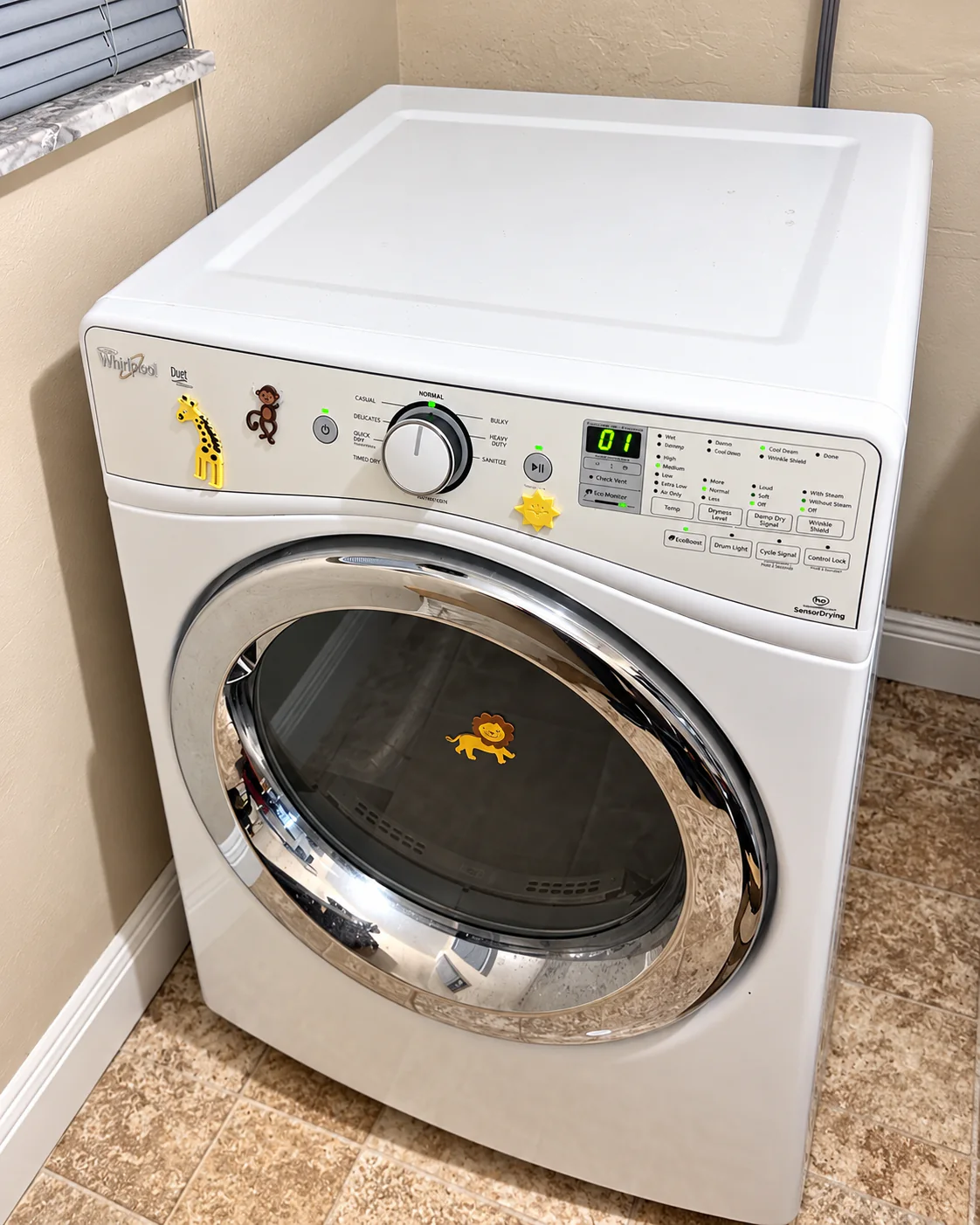

After the heating element replacement and internal cleaning, the dryer produced heat normally and operated correctly during testing.
Customer complaint
The dryer was running and the drum was turning, but the clothes were not drying because the unit was not producing heat.
Diagnosis

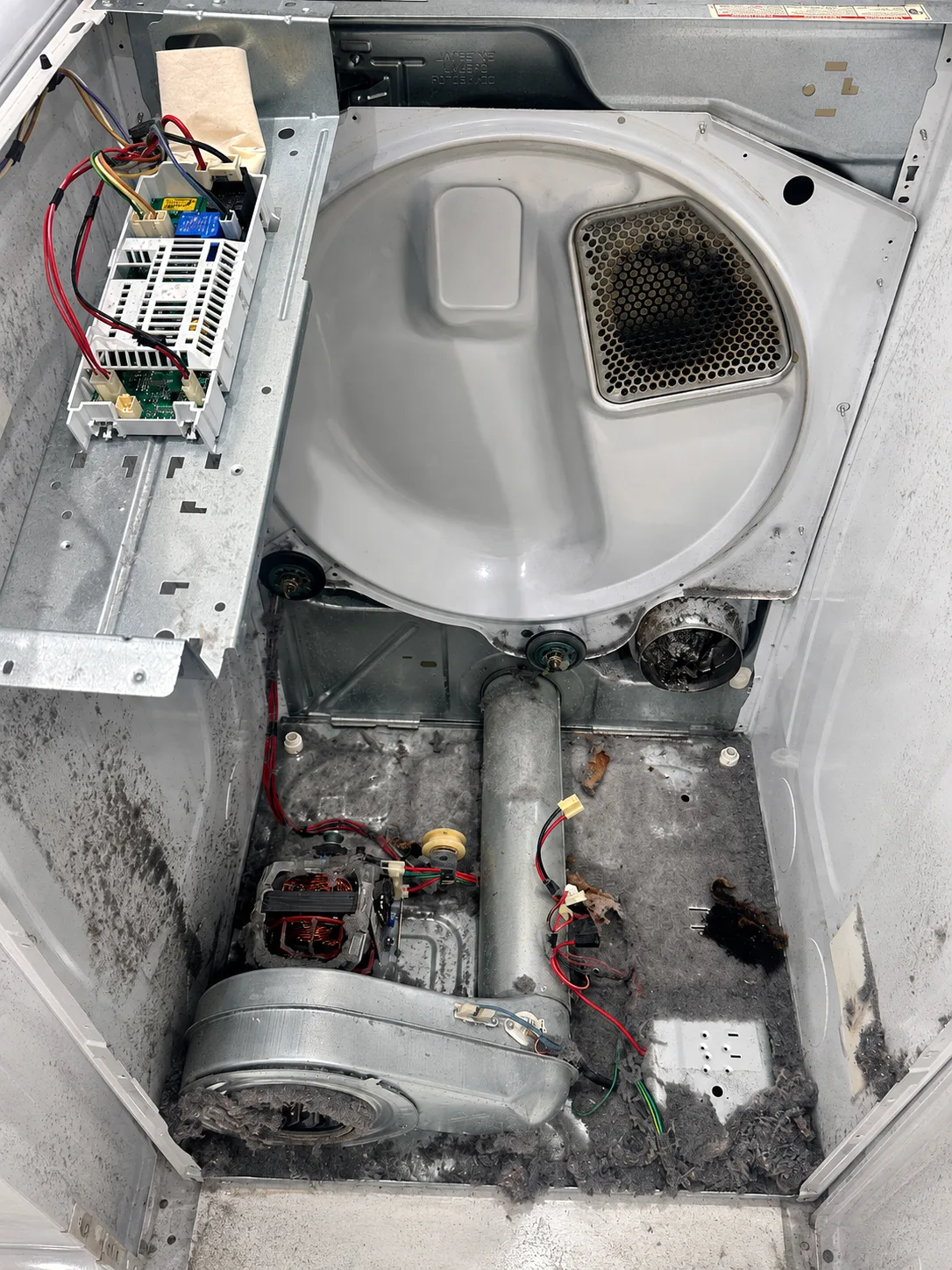

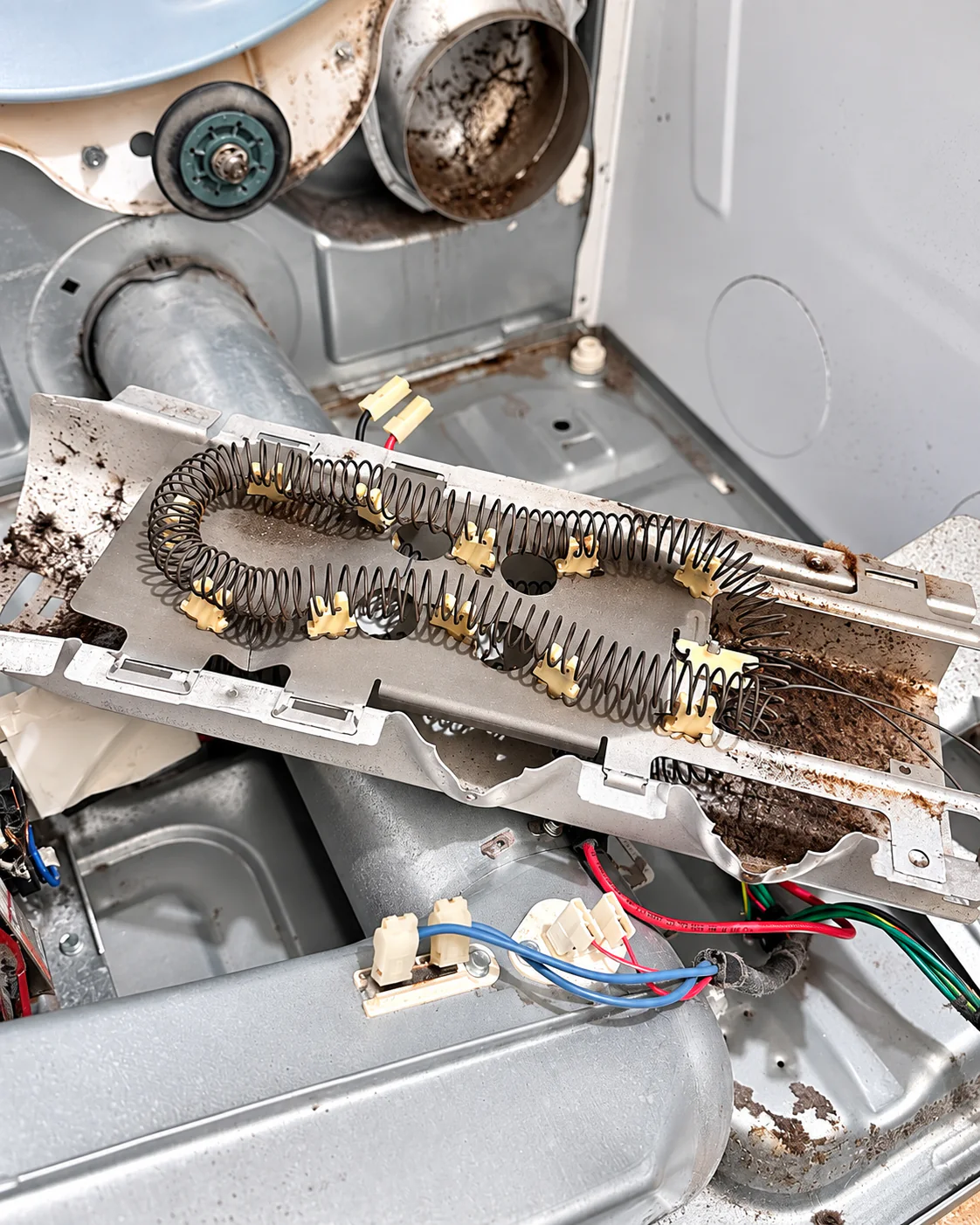

Inspection found a failed heating element and significant lint buildup inside the dryer. The lint accumulation likely contributed to overheating and failure of the heating element.
Repair completed
The failed heating element was replaced, and the interior of the dryer was thoroughly cleaned to remove accumulated lint.
Result
After the heating element replacement and internal cleaning, the dryer produced heat normally and operated correctly during testing.
Technician detail
The lint filter may not have been fully seated during previous use, which could have allowed excess lint to bypass the filter and accumulate inside the dryer. This was considered a possible contributing factor.

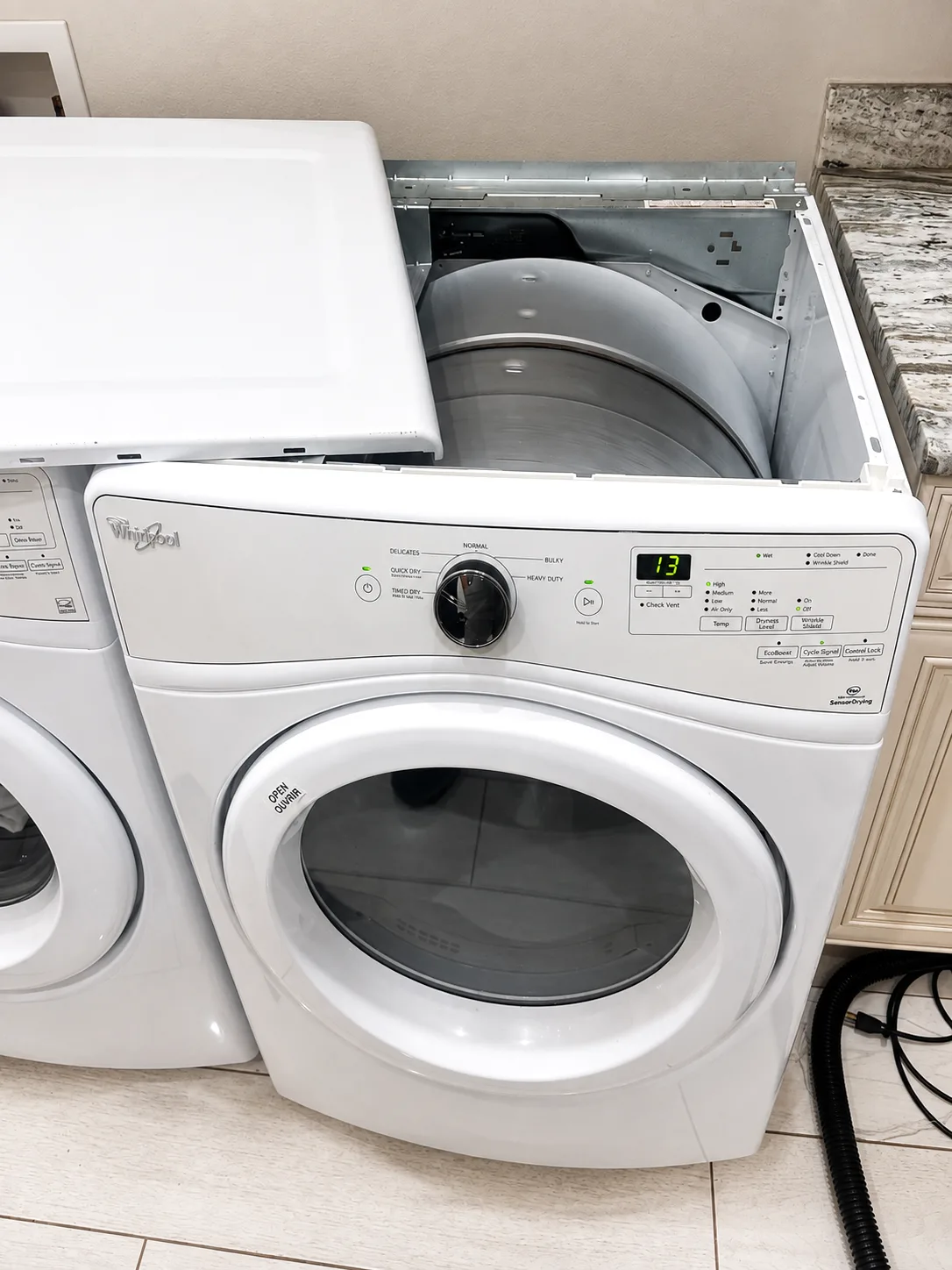

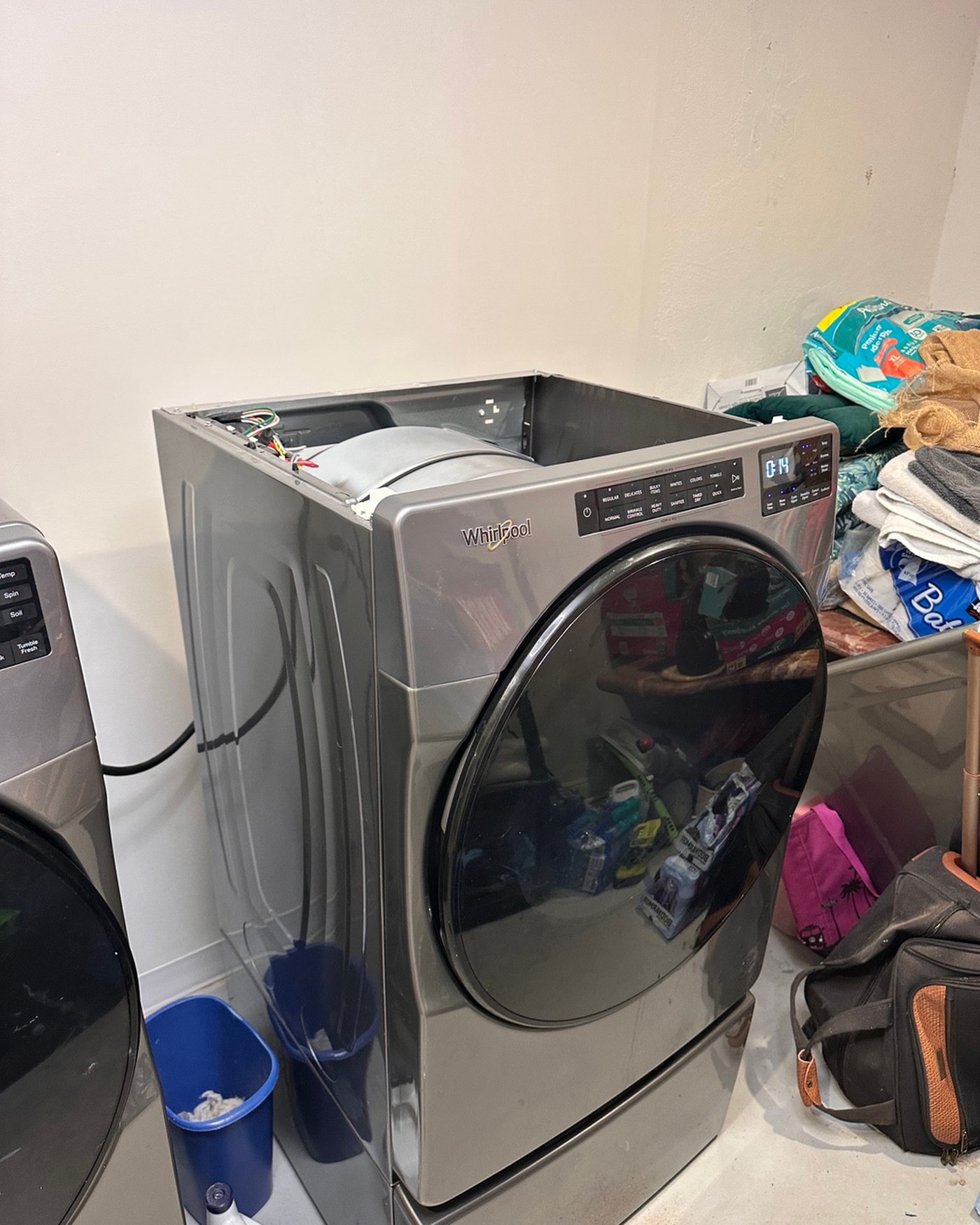

Dryer Disassembled for DiagnosisInternal Lint BuildupHeating Element / Repair Area

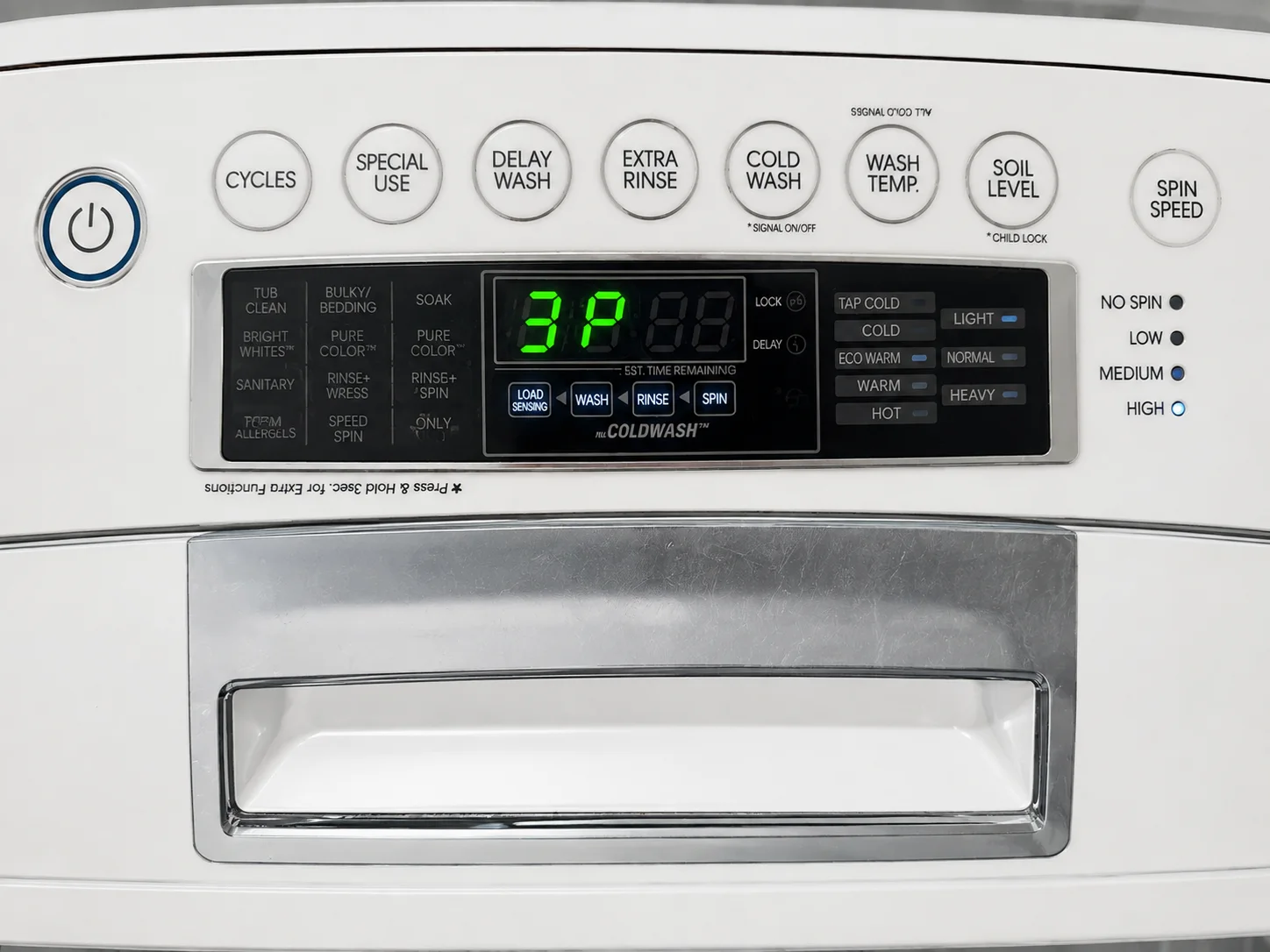

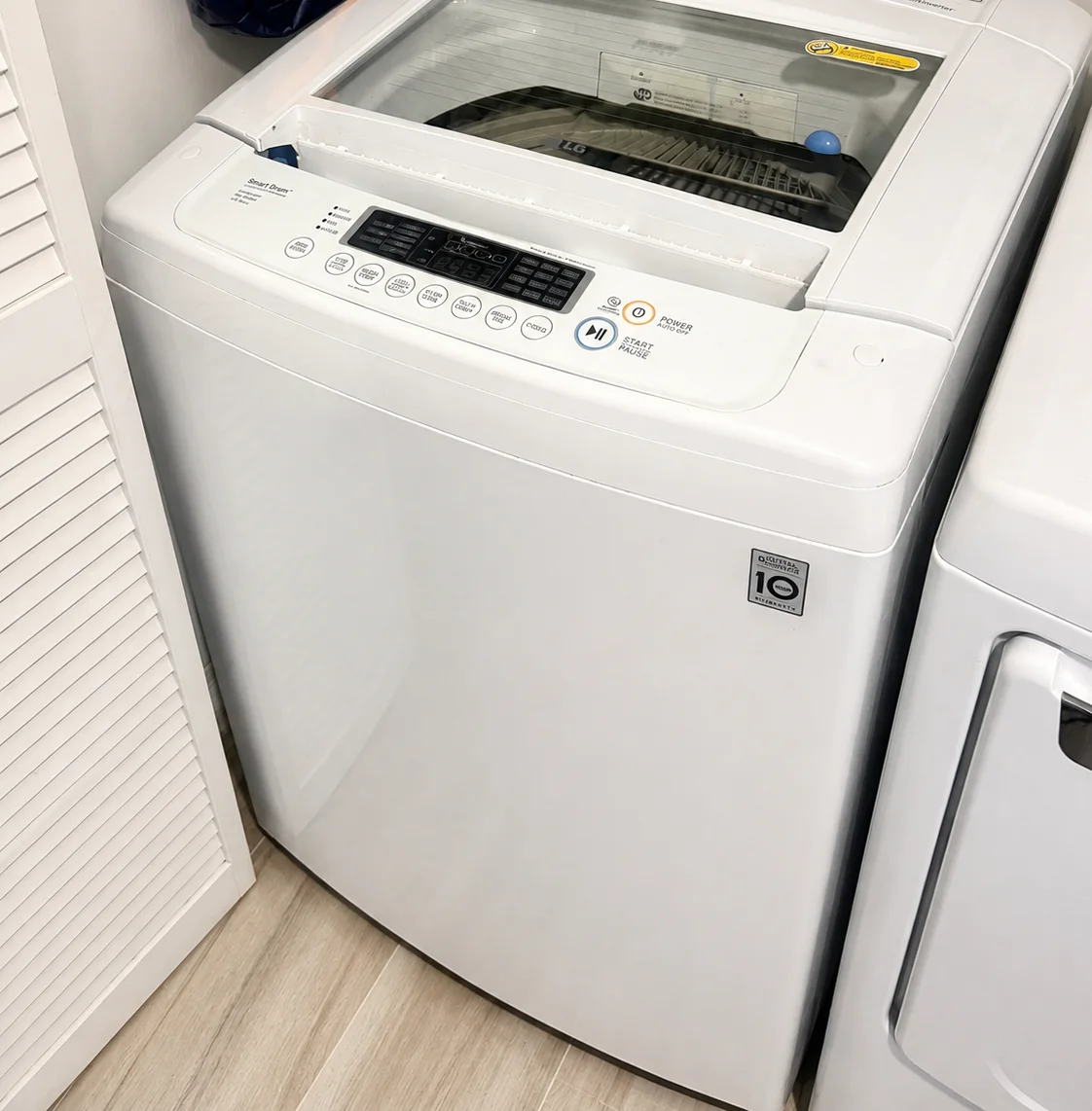

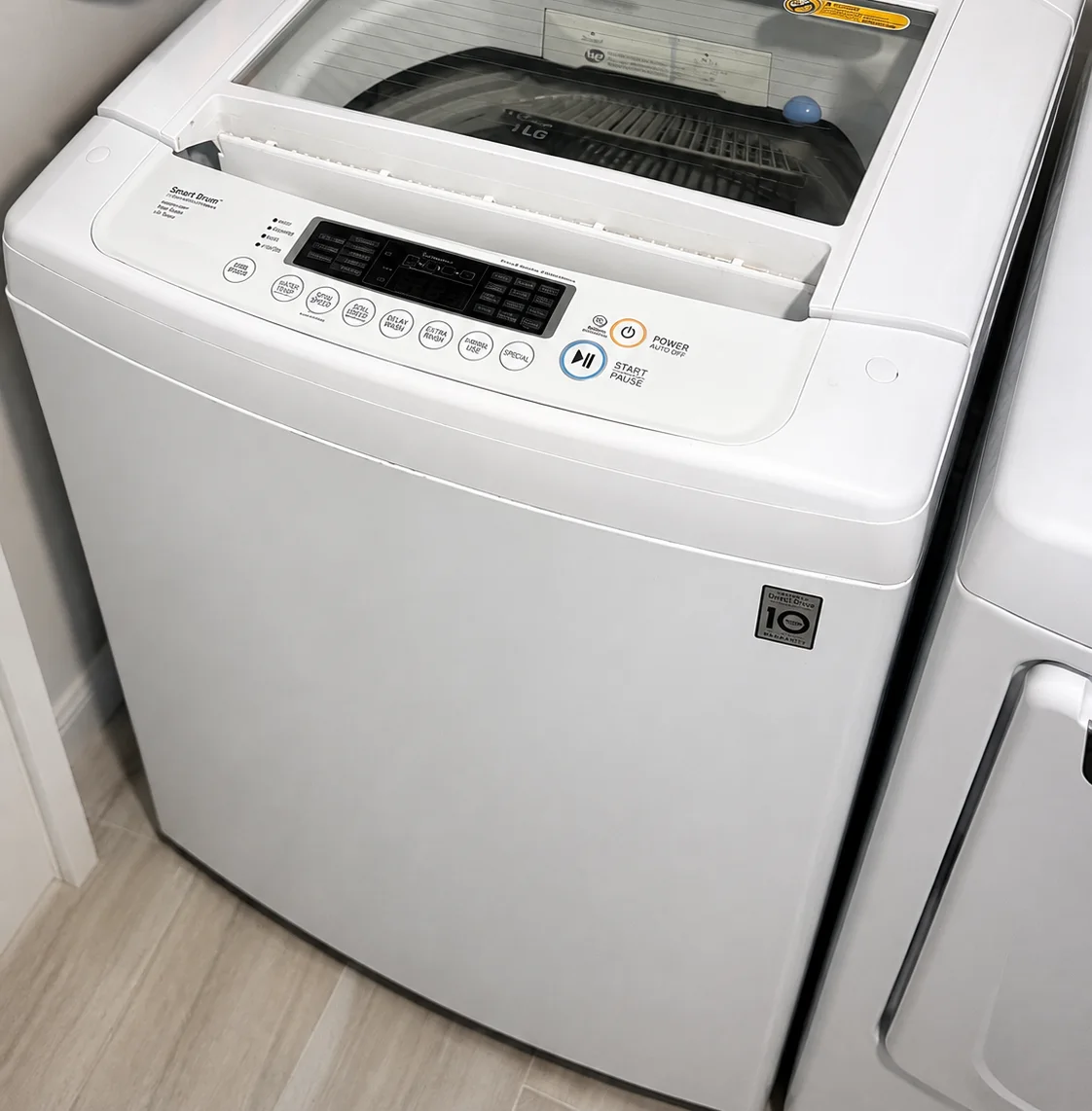

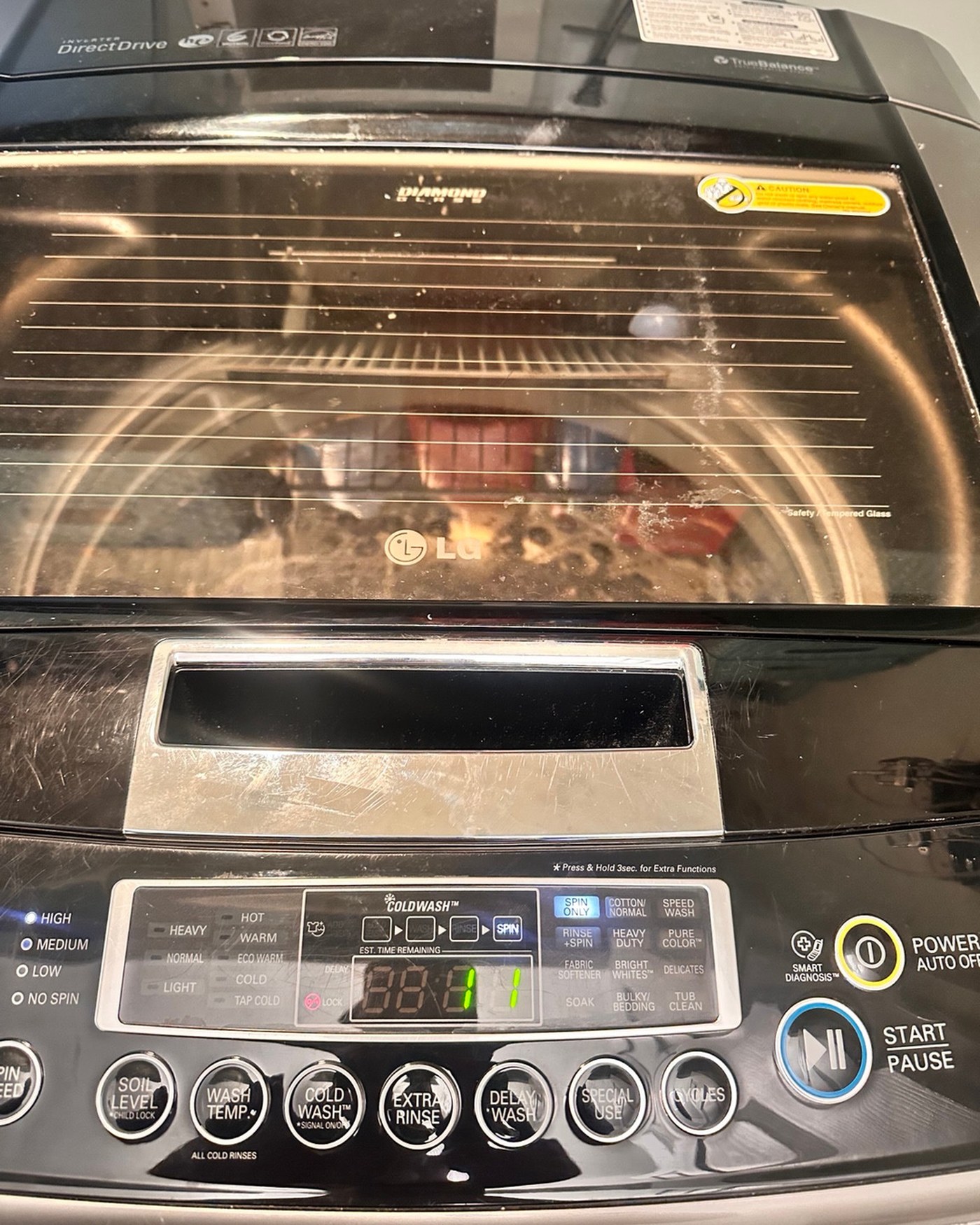

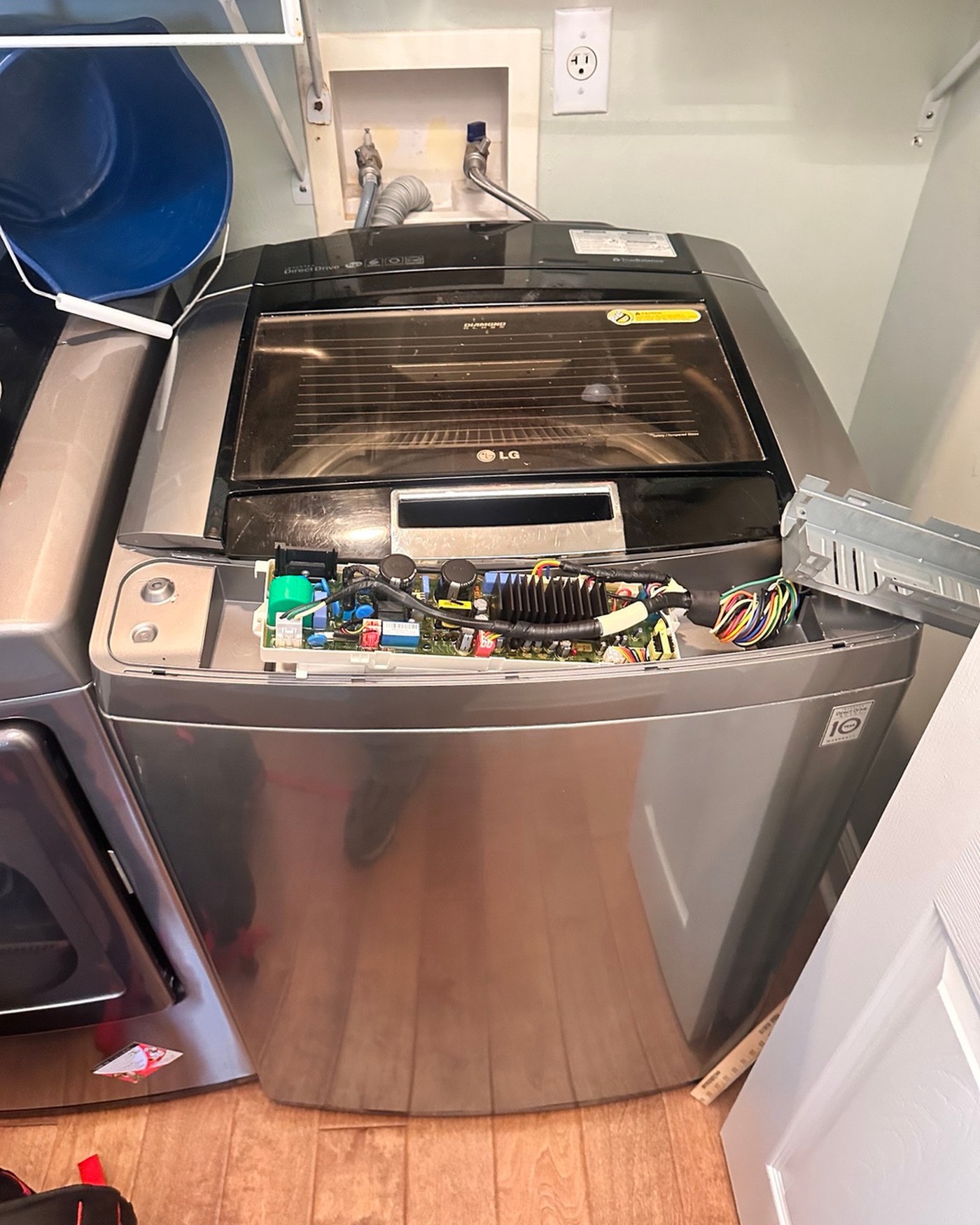

Sanibel, FLWasherLG / WT1101CWTop-load washer control board service callRepair Completed
After the control board replacement, the washer started normally and operated correctly during testing.
Customer complaint
The washer would not start the wash cycle and displayed an error.
Diagnosis
The lid lock was tested and found working correctly. The lid-position magnet also responded properly when the lid was closed. Further diagnosis traced the failure to the control board. Evidence of insect contamination was also found in the control area.
Repair completed
The failed control board was replaced.
Result
After the control board replacement, the washer started normally and operated correctly during testing.

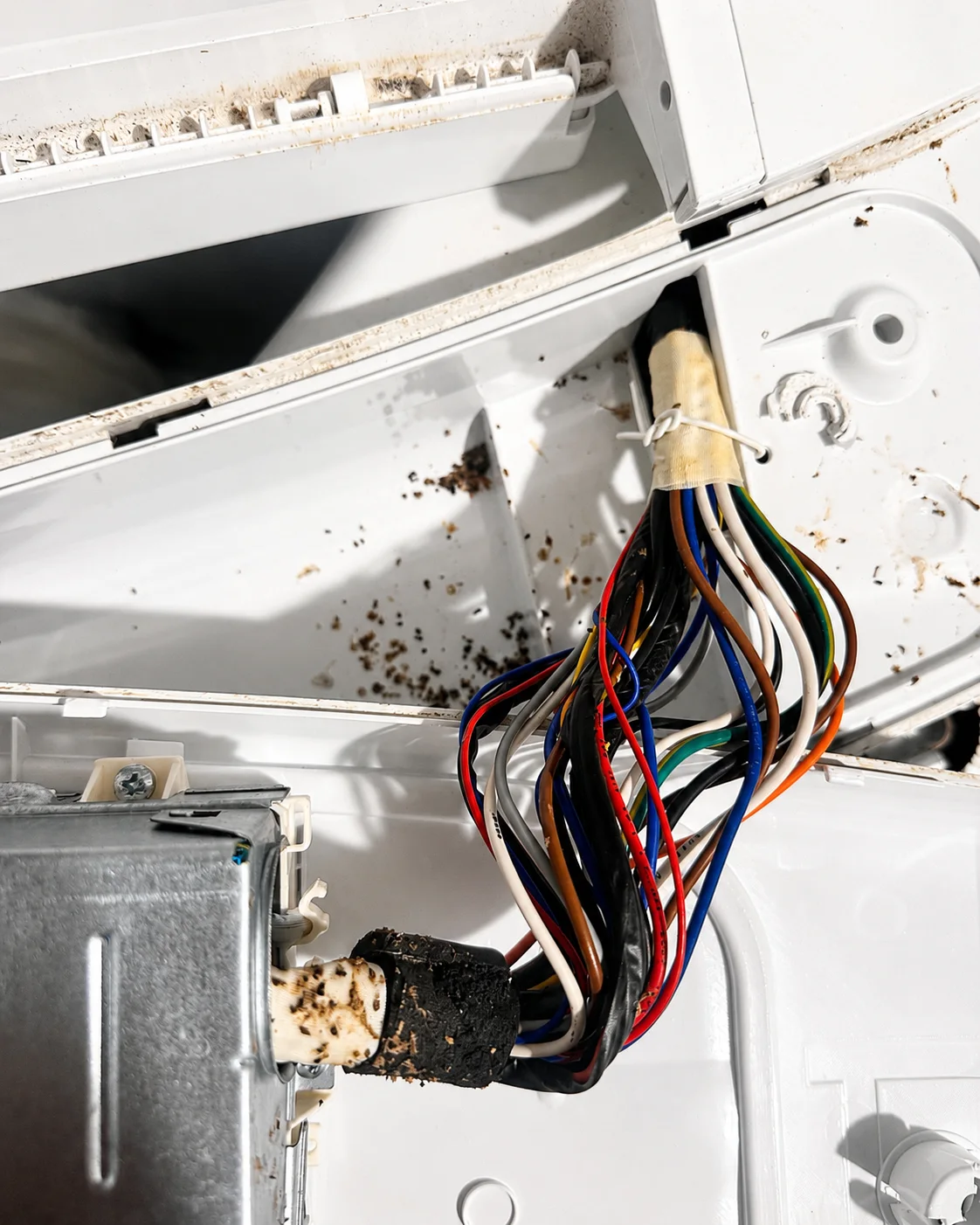

Control Panel / Diagnostic StateControl Area / Wiring ContaminationWasher After Control Board Replacement

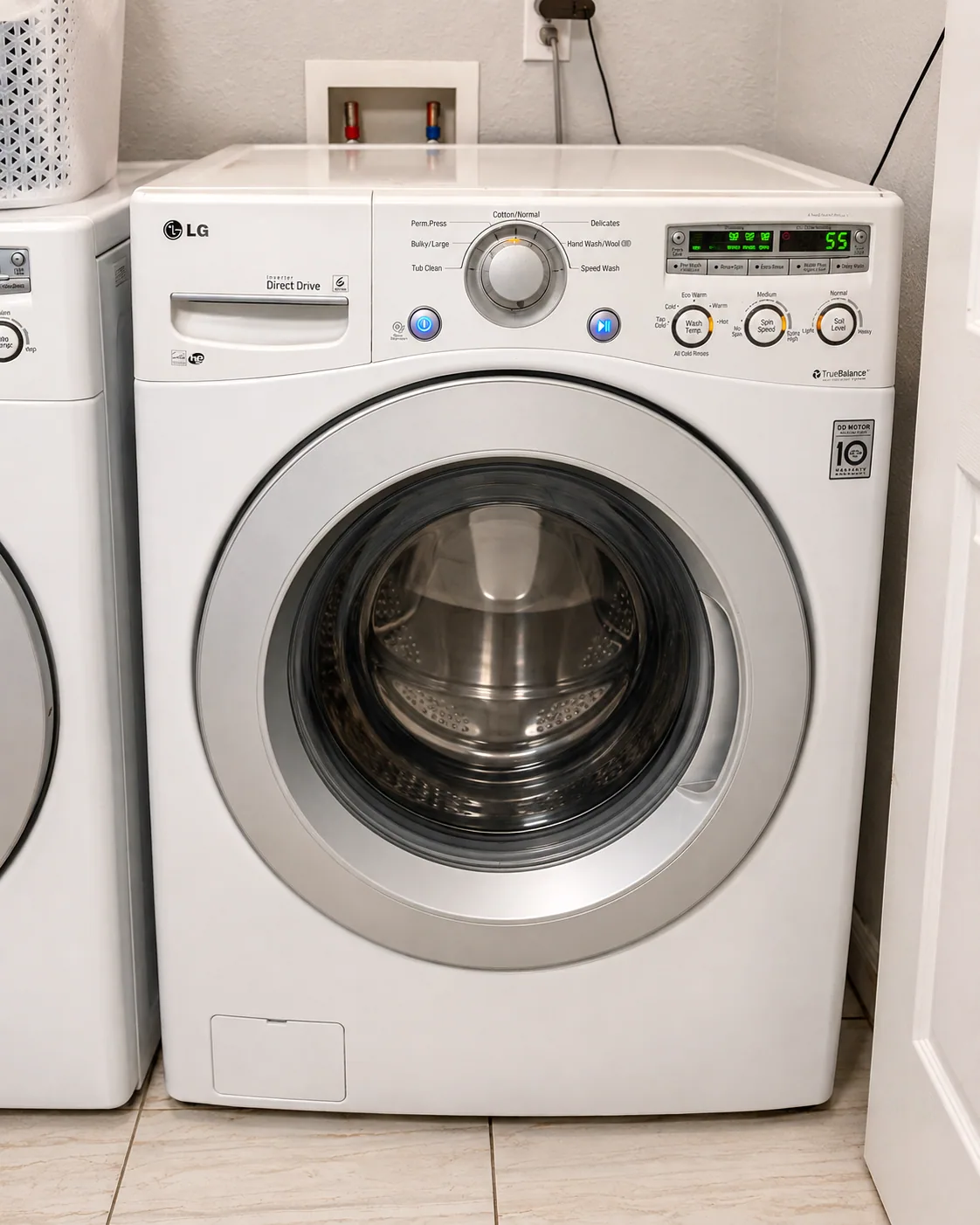

LG Washer Drain Pump Replacement in Lehigh Acres, FL

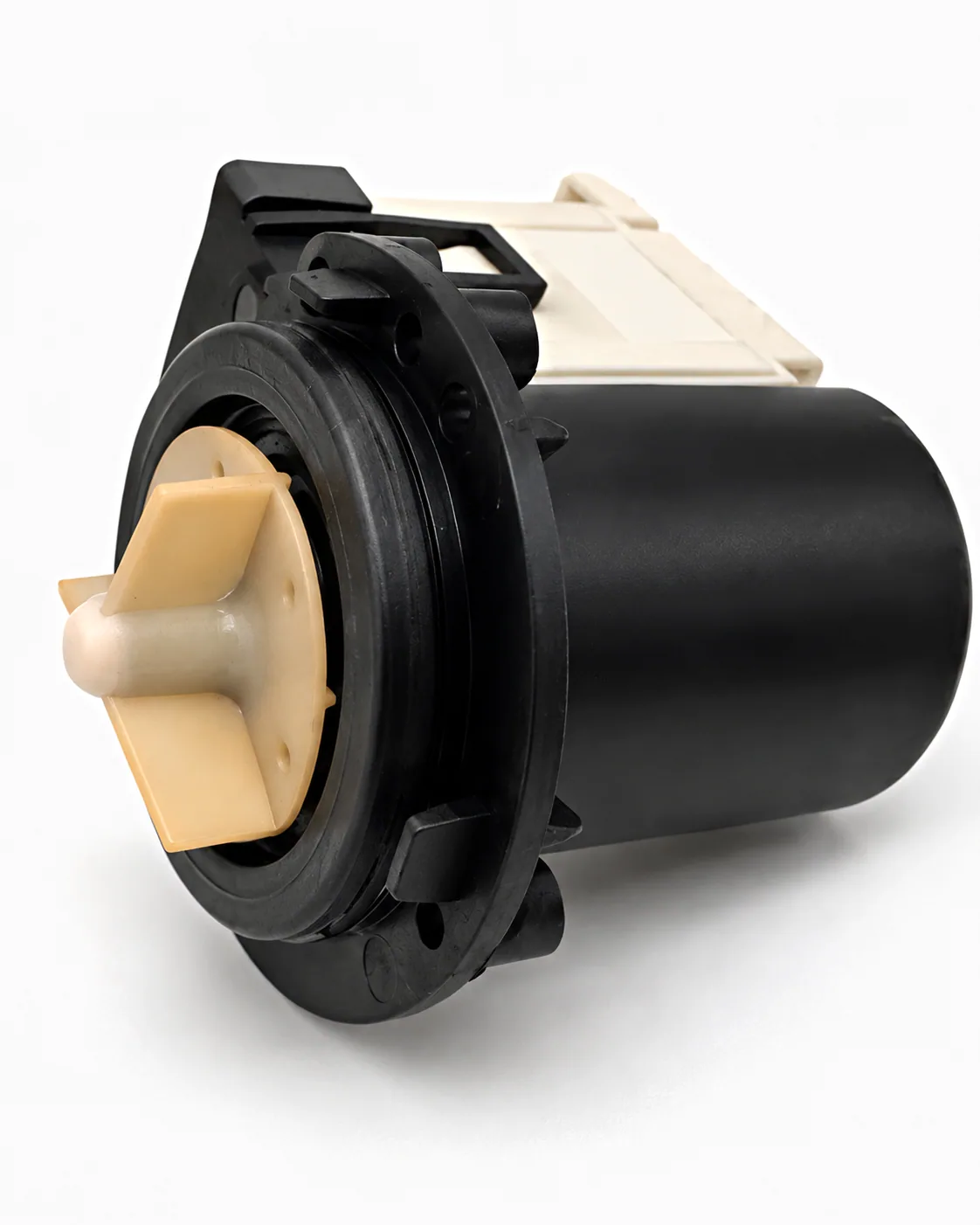

LG WM3050CW · Drain pump 4681EA2001T
Customer reported that the washer would not drain and water was left inside the tub. The technician drained the water through the emergency drain hose near the filter and checked the filter first; it was clean. Diagnosis found a failed drain pump, and replacing it restored normal draining.
Repair
Replaced drain pump 4681EA2001T.
Result
Washer drains normally and works correctly.

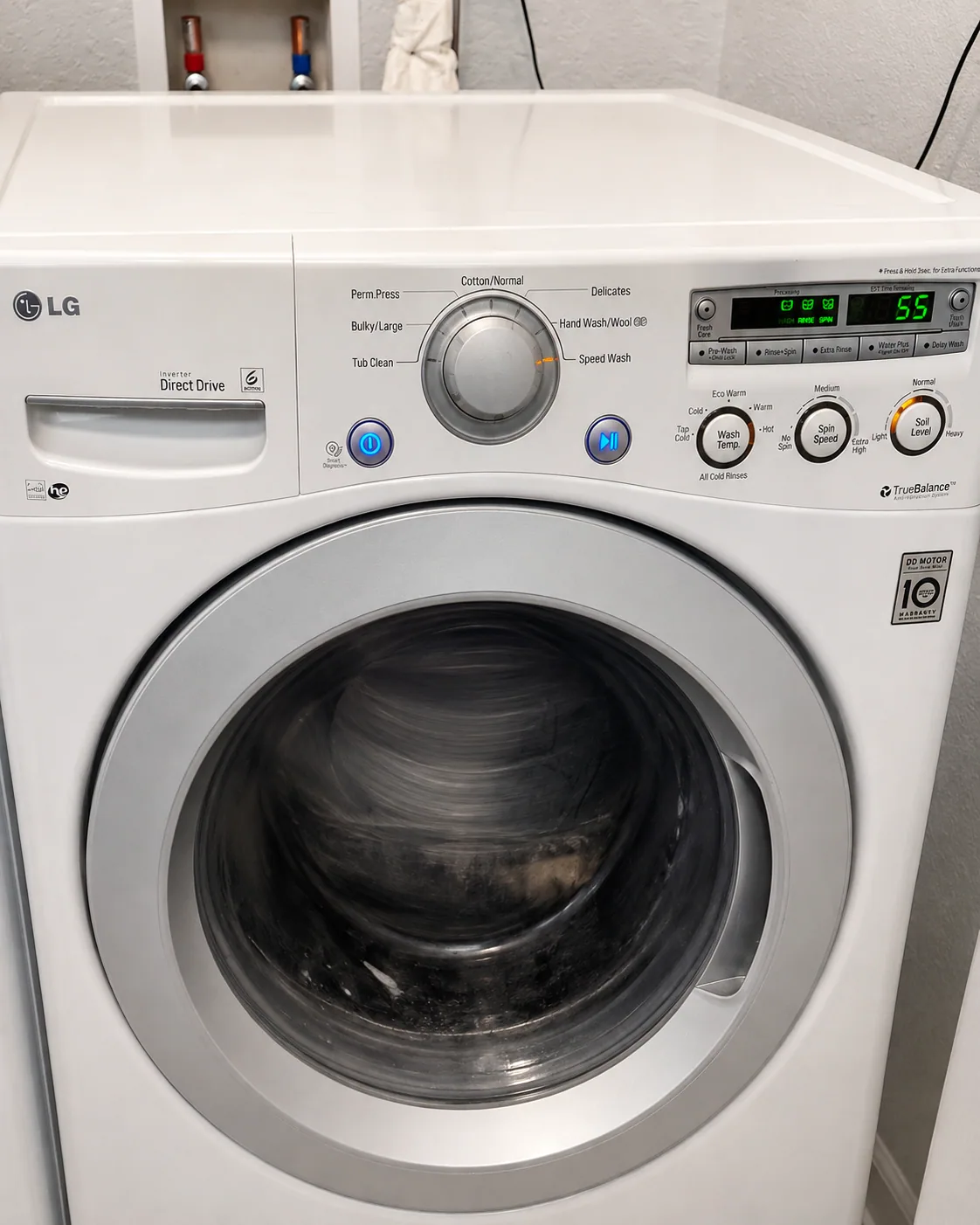

Unit Tested After DiagnosisFailed Drain Pump Replaced During RepairWasher Working Properly After Repair
Problem
Washer would not drain, leaving water inside the tub.
Diagnosis
Filter was checked and found clean. Drain pump failure confirmed.
Repair
Replaced drain pump 4681EA2001T.
Result
Washer drains normally and works correctly.

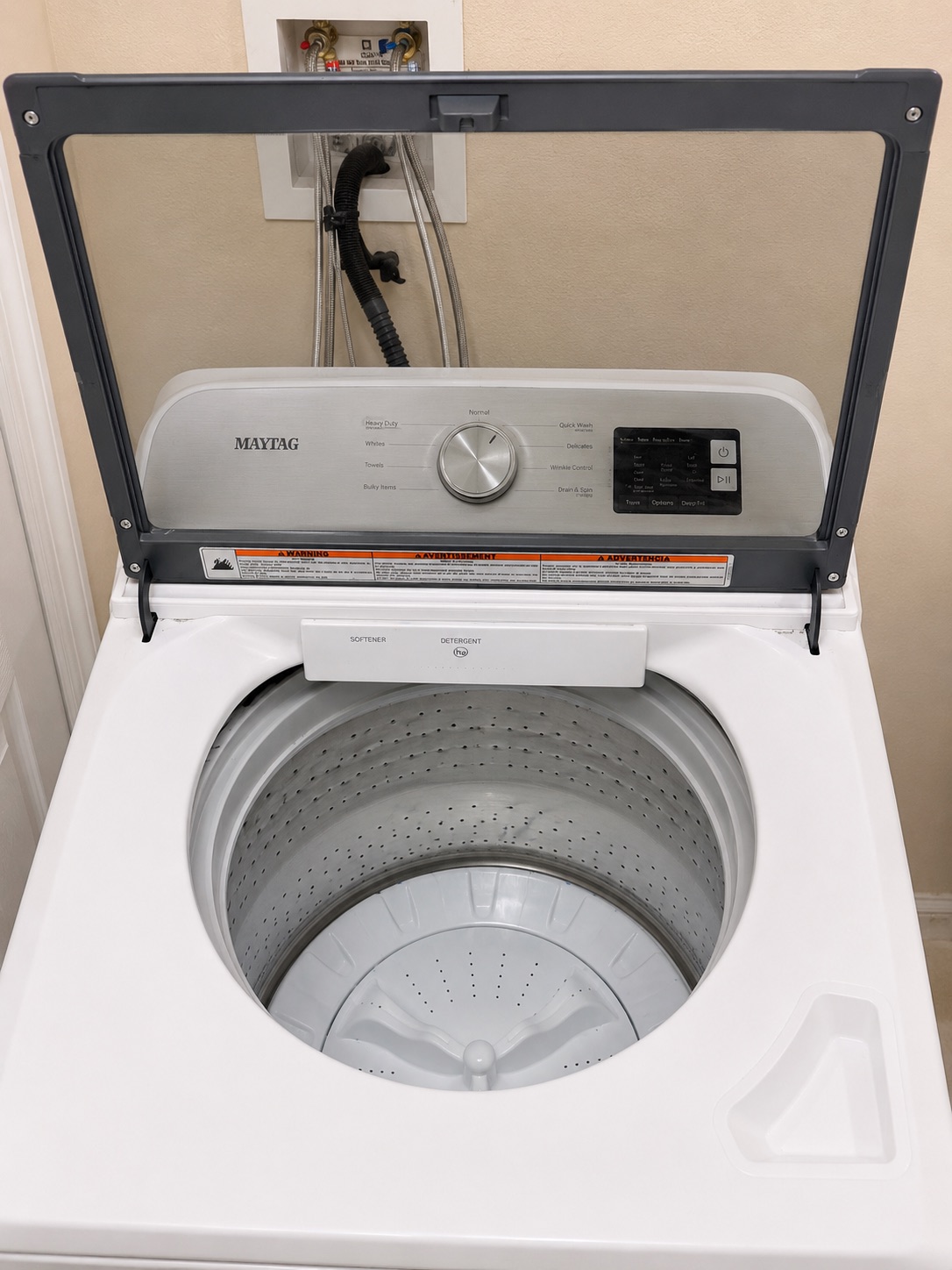

Fort Myers, FLWasherMaytag / MVW6200KW0Laundry room washer service callRepair Completed
The shift actuator was replaced with part W11481722.
Result
After the replacement, the washer operated normally in the wash cycle and completed testing successfully.
Customer complaint
The washer would not operate properly in the wash cycle.

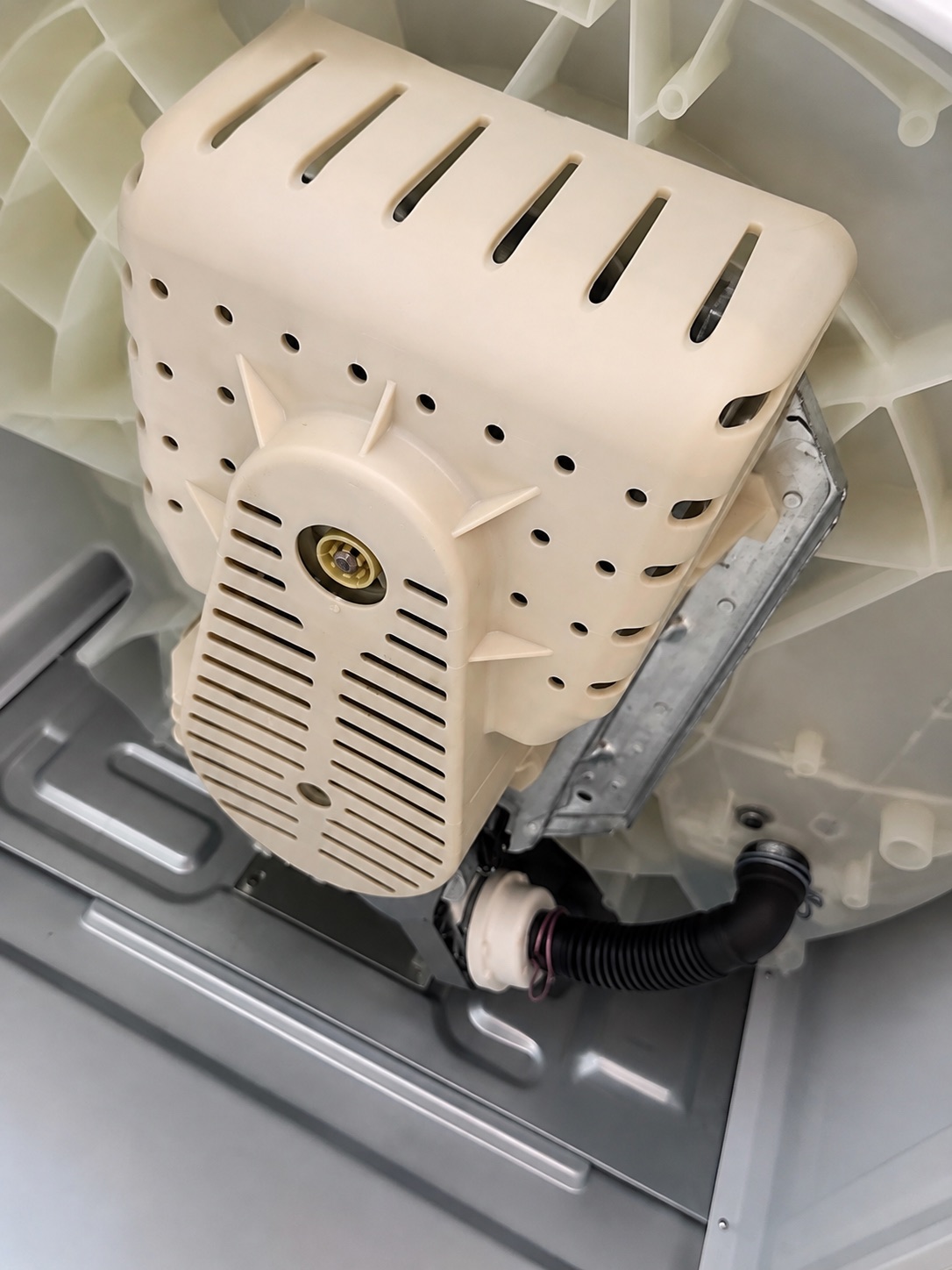

Diagnosis
Testing confirmed that the spin function was working, but the washer was not shifting correctly into the wash/agitation mode. The problem was traced to a failed shift actuator.
Repair completed
The shift actuator was replaced with part W11481722.
Result
After the replacement, the washer operated normally in the wash cycle and completed testing successfully.

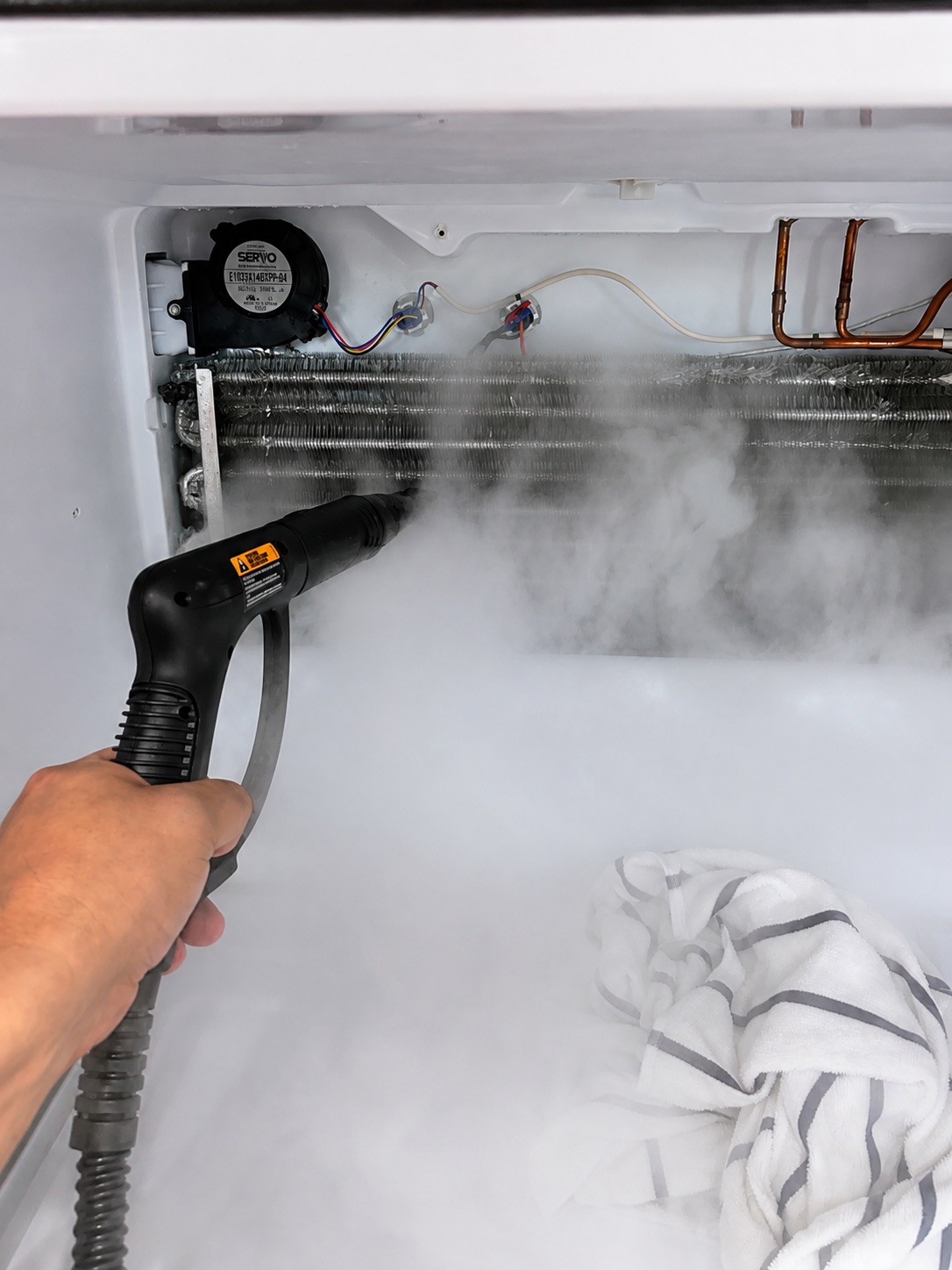

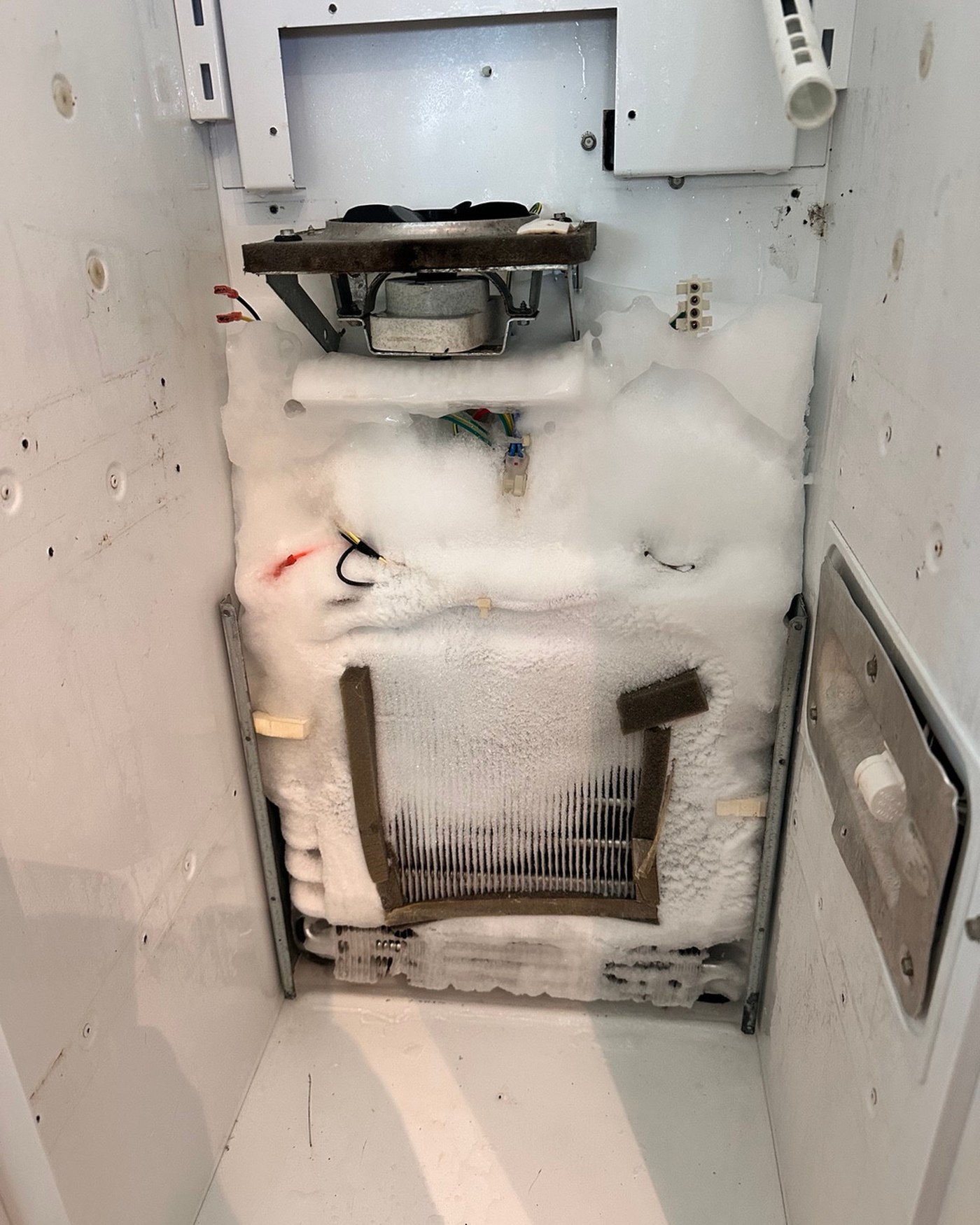

The evaporator was fully defrosted using a steamer, and the cooling system and related components were checked afterward.
Result
After the frost was removed, airflow was restored and the freezer returned to normal cooling operation.
Customer complaint
The freezer was not maintaining the proper temperature.
Diagnosis

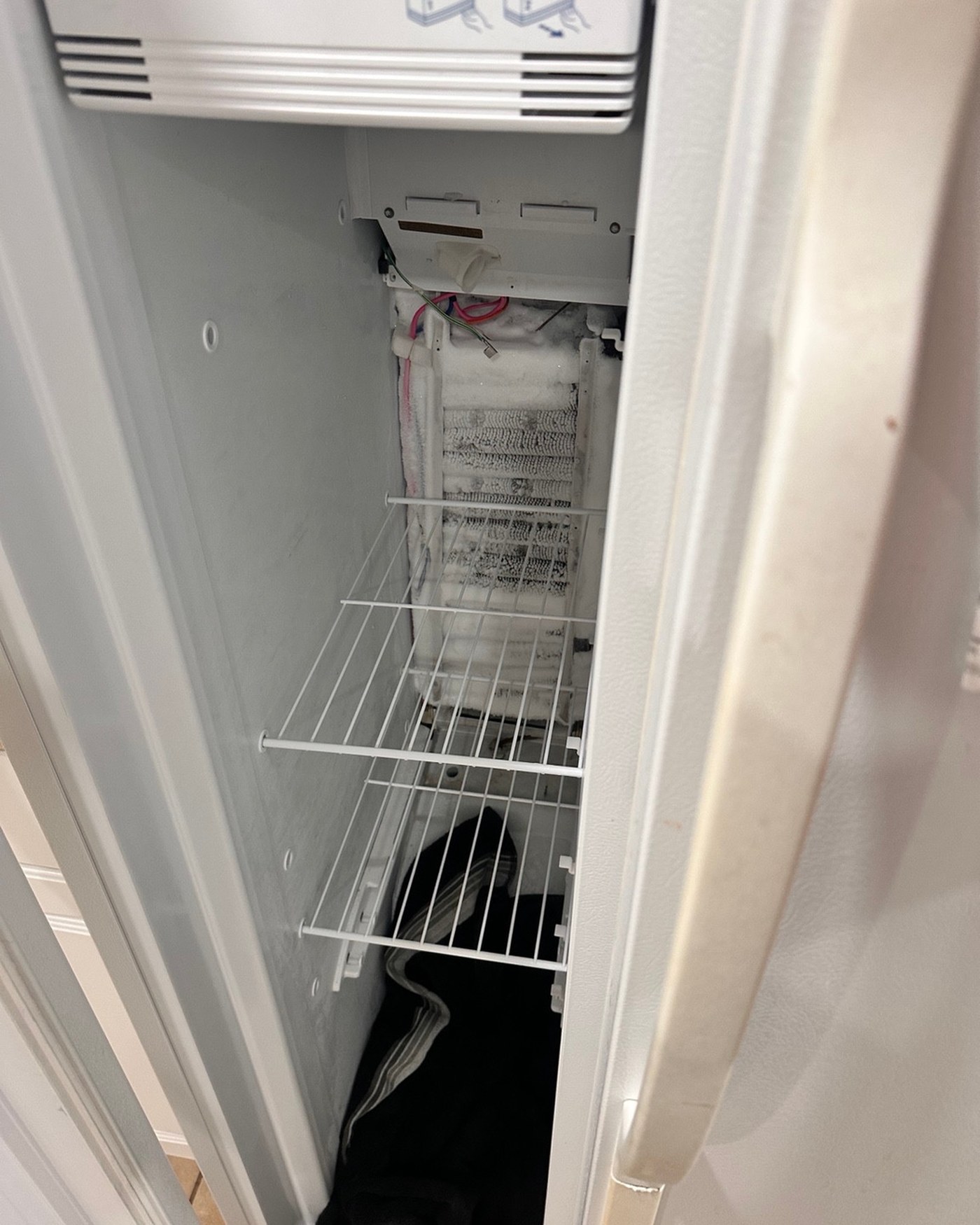

Inspection found heavy frost buildup on the evaporator, restricting normal airflow through the freezer compartment.
Repair completed
The evaporator was fully defrosted using a steamer, and the cooling system and related components were checked afterward.
Result
After the frost was removed, airflow was restored and the freezer returned to normal cooling operation.
Technician detail
A freezer door that is not fully closed can allow warm, humid air to enter and may contribute to excessive frost buildup. This was considered a possible cause in this case.

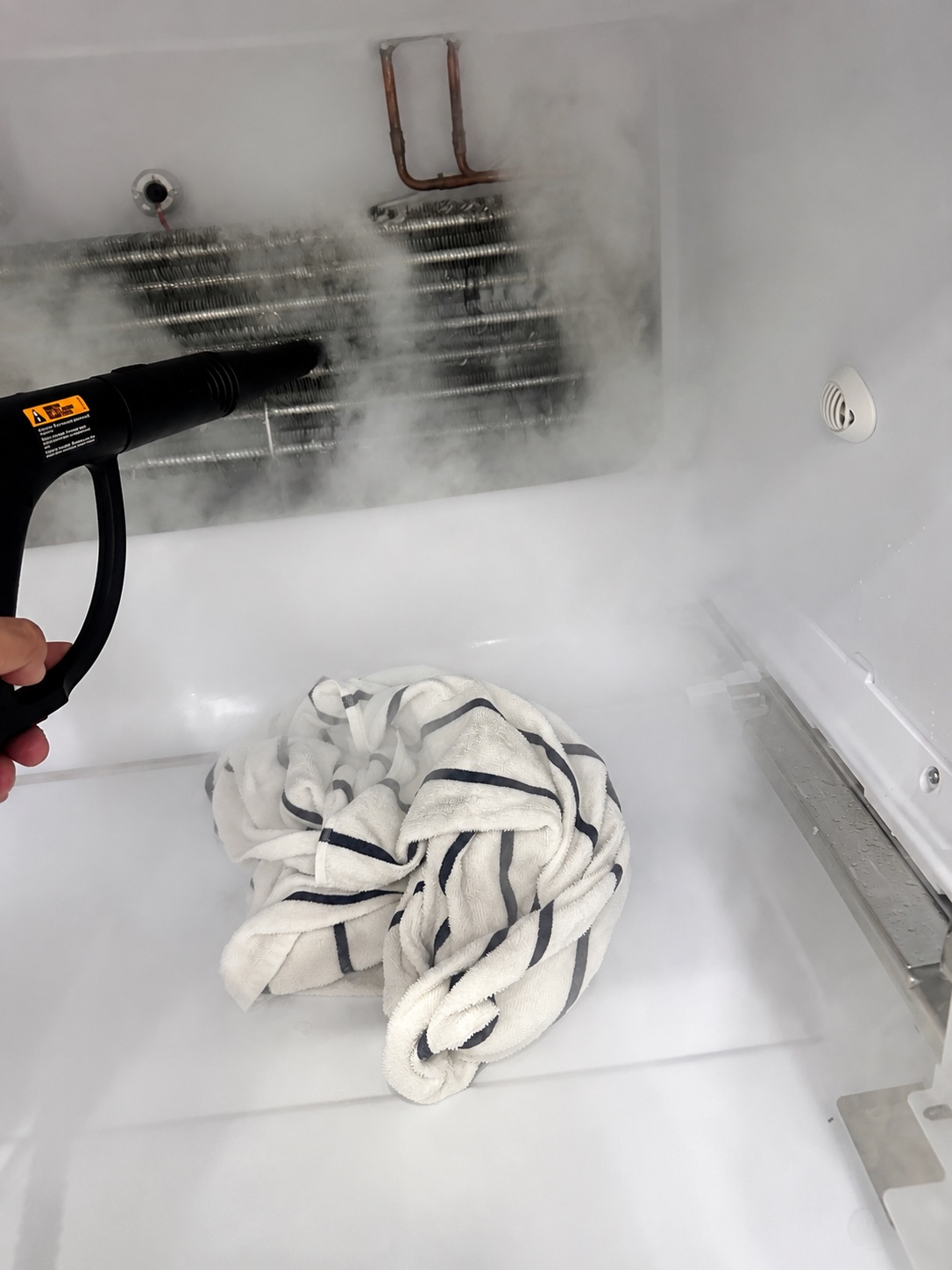

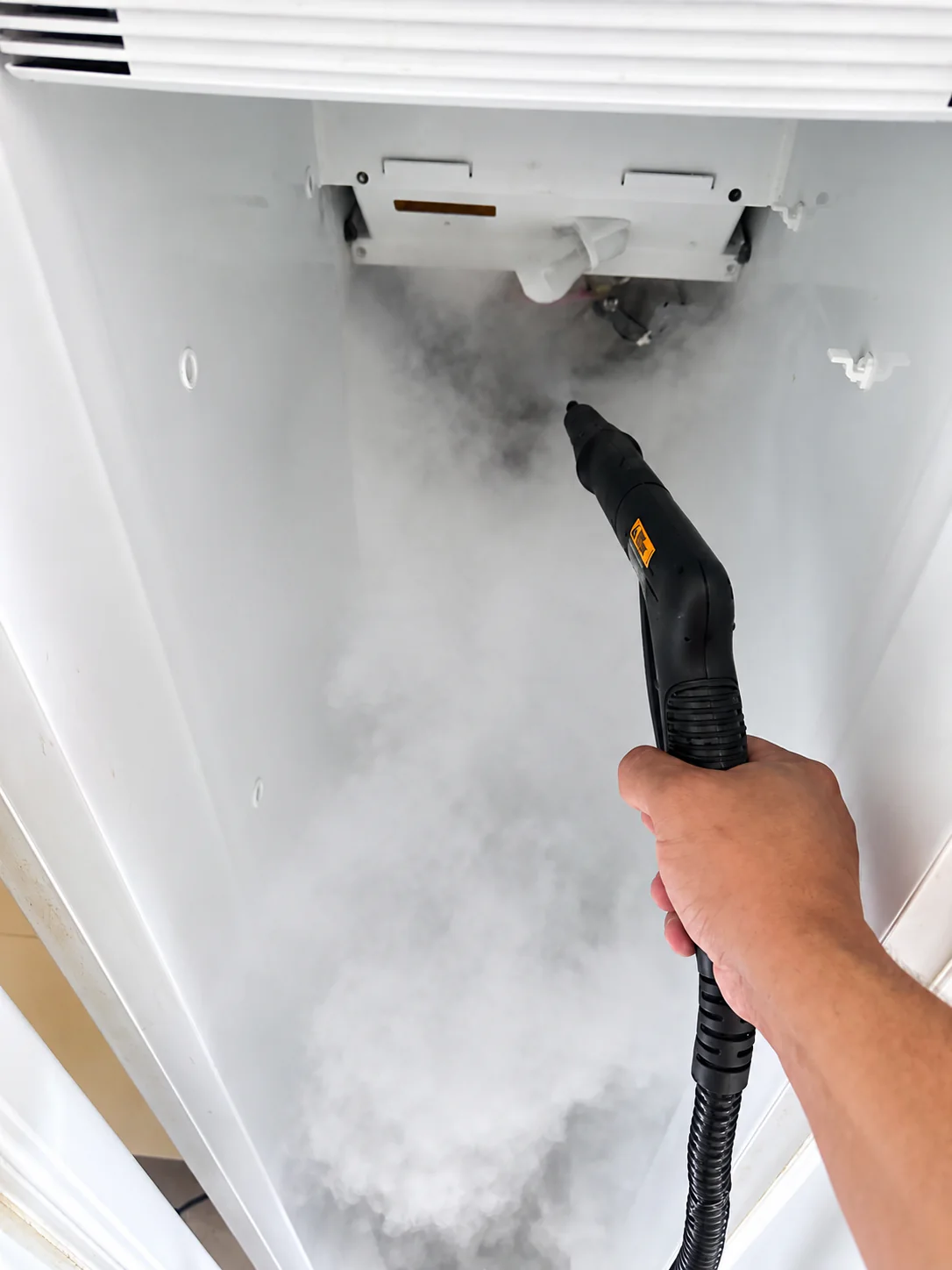

Steam Defrost ProcessEvaporator During DefrostFreezer Test / Post-Repair Check

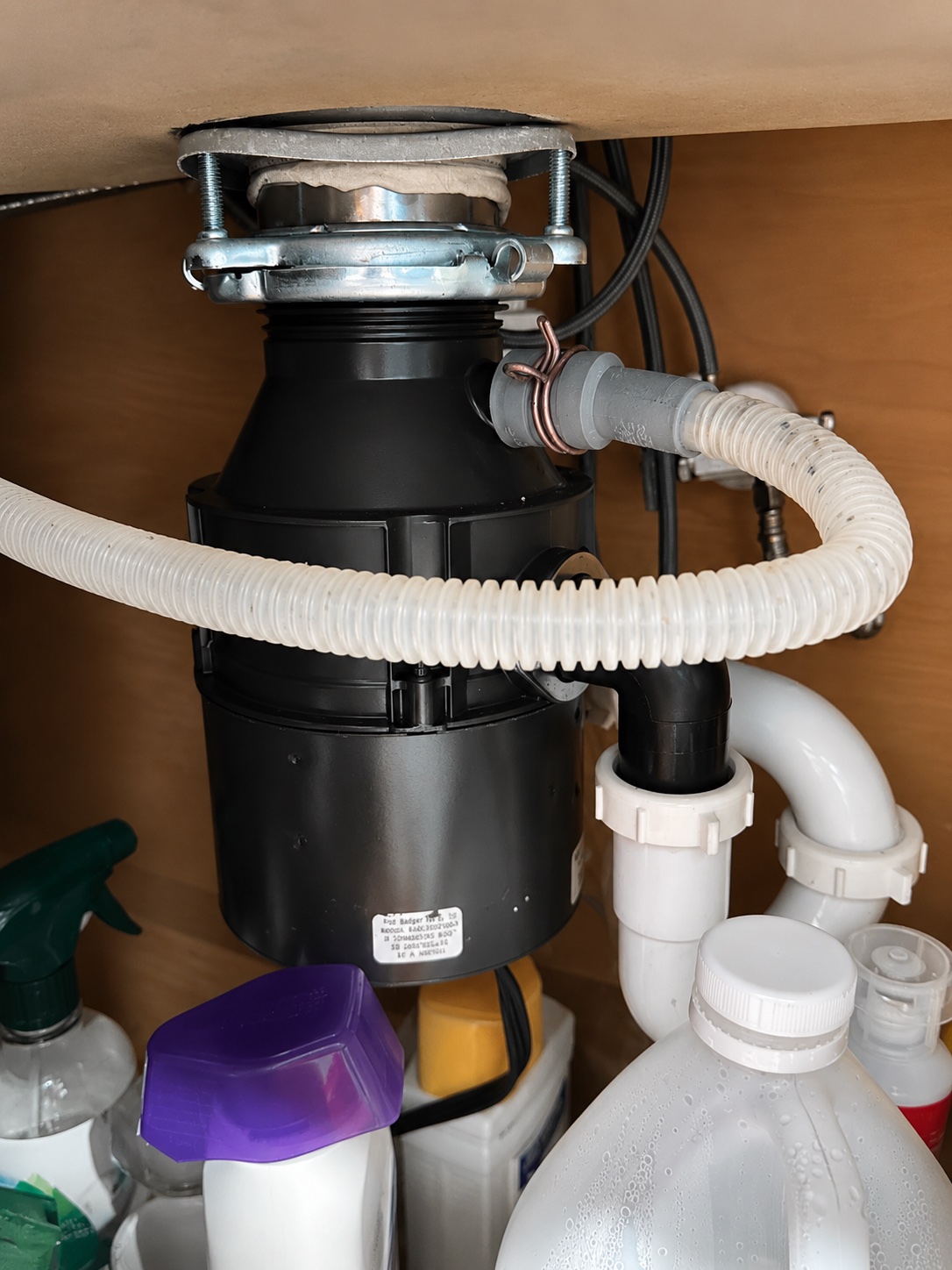

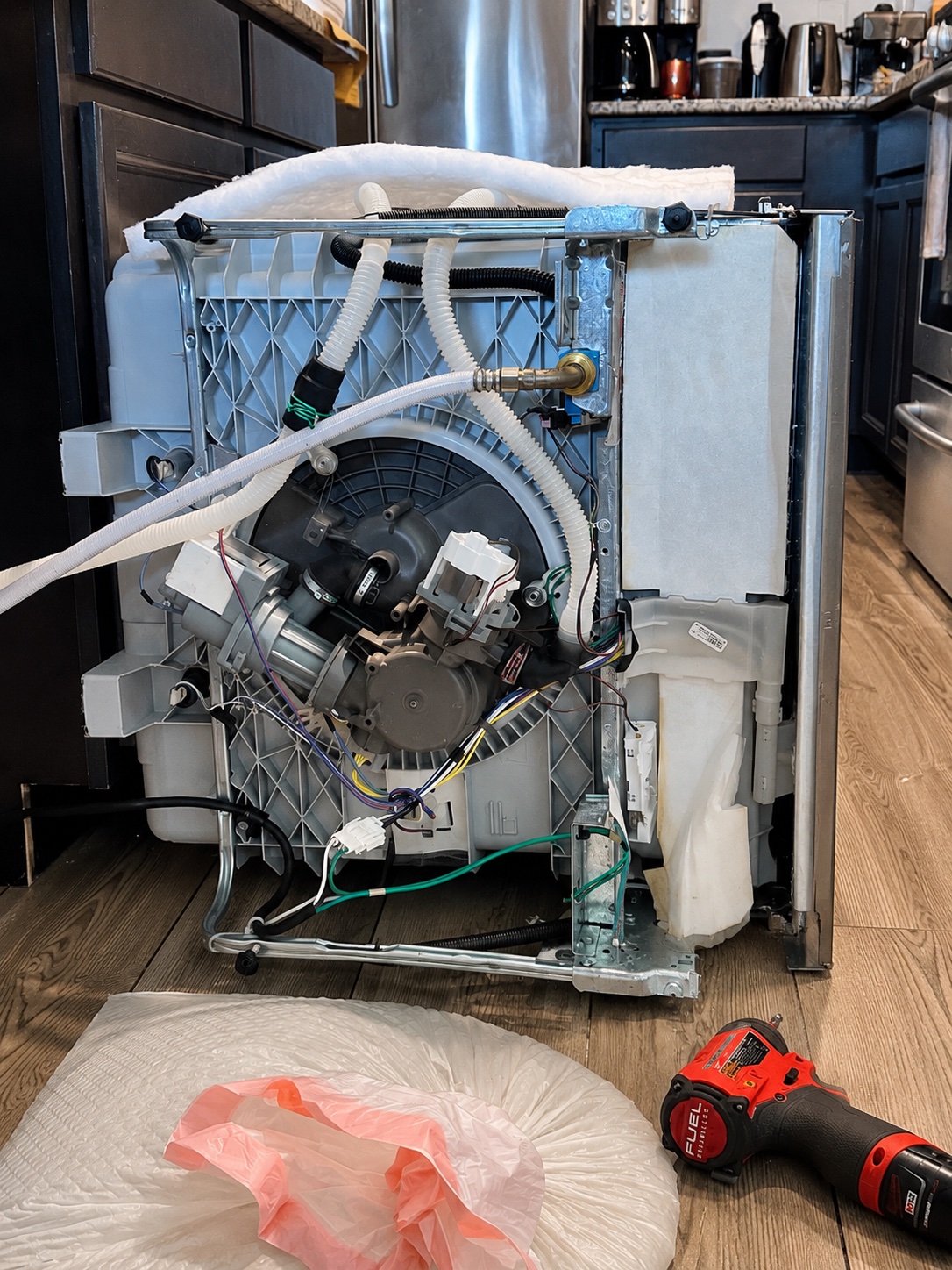

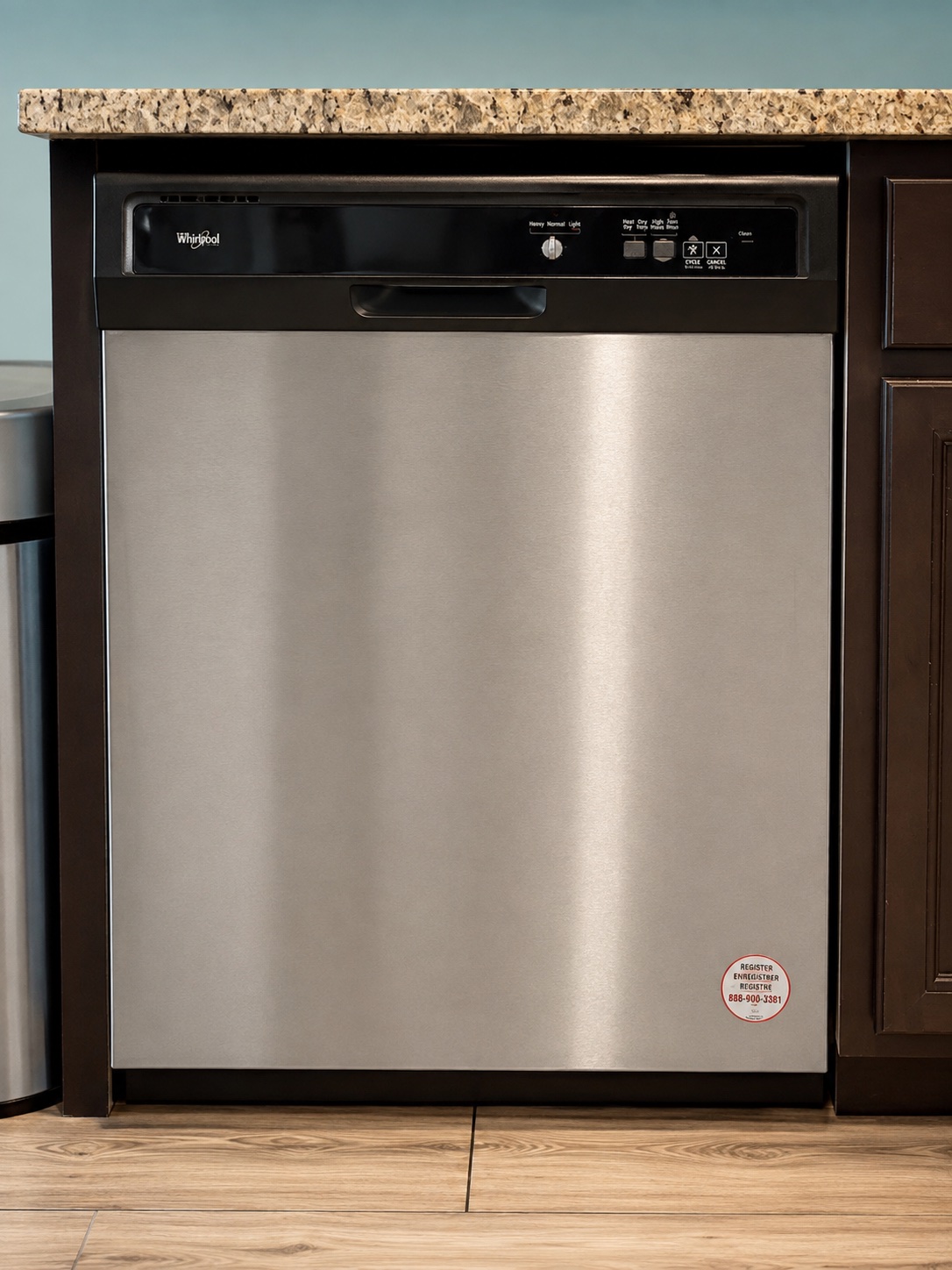

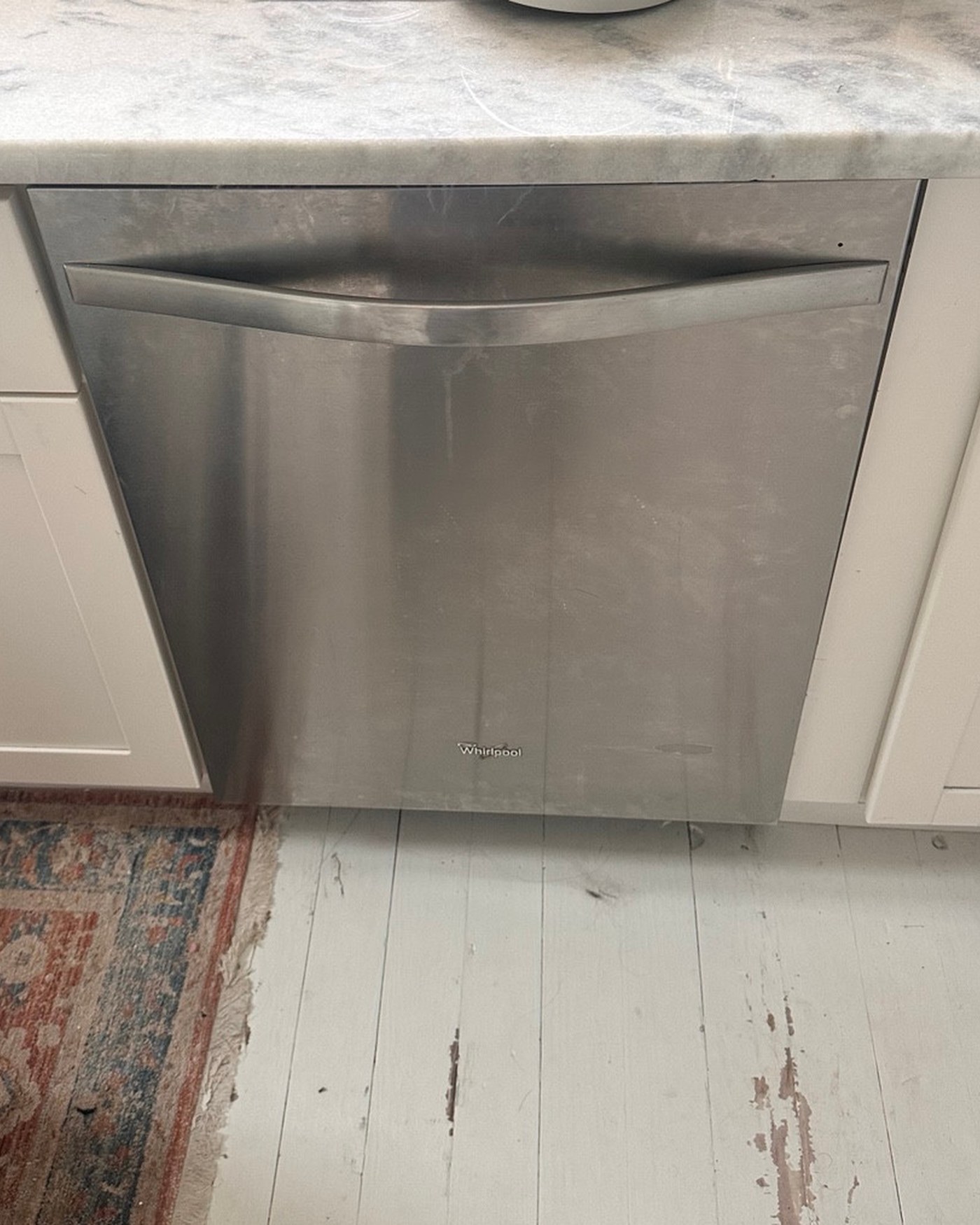

Fort Myers, FLDishwasherWhirlpool / WDT970SAHS1Kitchen dishwasher drain service callRepair Completed
The knockout plug in the garbage disposal dishwasher inlet was removed, restoring a clear drain path.
Result
After the obstruction was removed, the dishwasher drained normally during testing.
Customer complaint
The dishwasher was completing cycles but leaving water inside because it was not draining properly.
Diagnosis

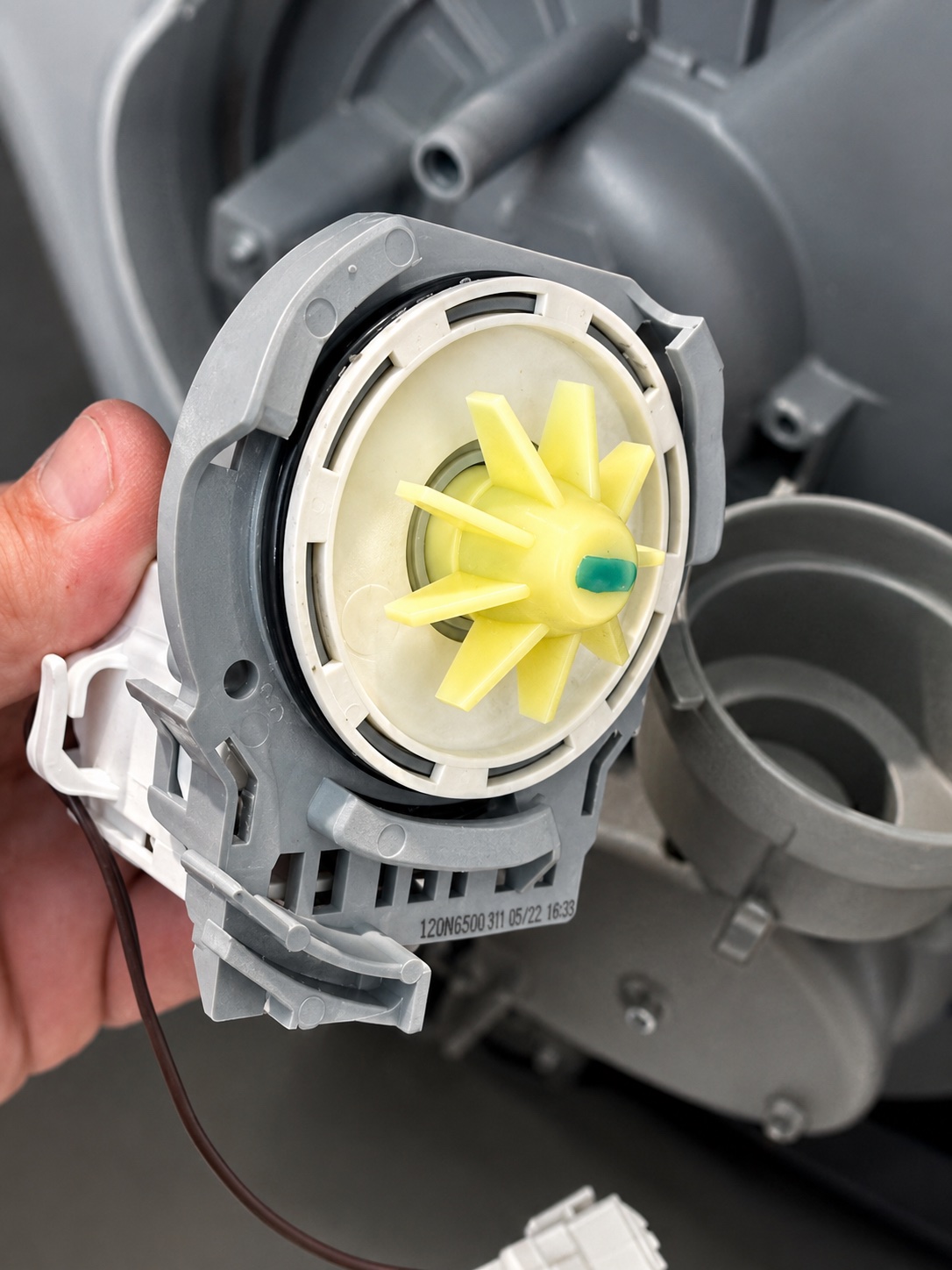

The drain pump tested normally. Further inspection showed that the dishwasher drain hose was connected to a garbage disposal that had been replaced several months earlier, but the dishwasher inlet knockout plug had never been removed.
Repair completed
The knockout plug in the garbage disposal dishwasher inlet was removed, restoring a clear drain path.
Result
After the obstruction was removed, the dishwasher drained normally during testing.

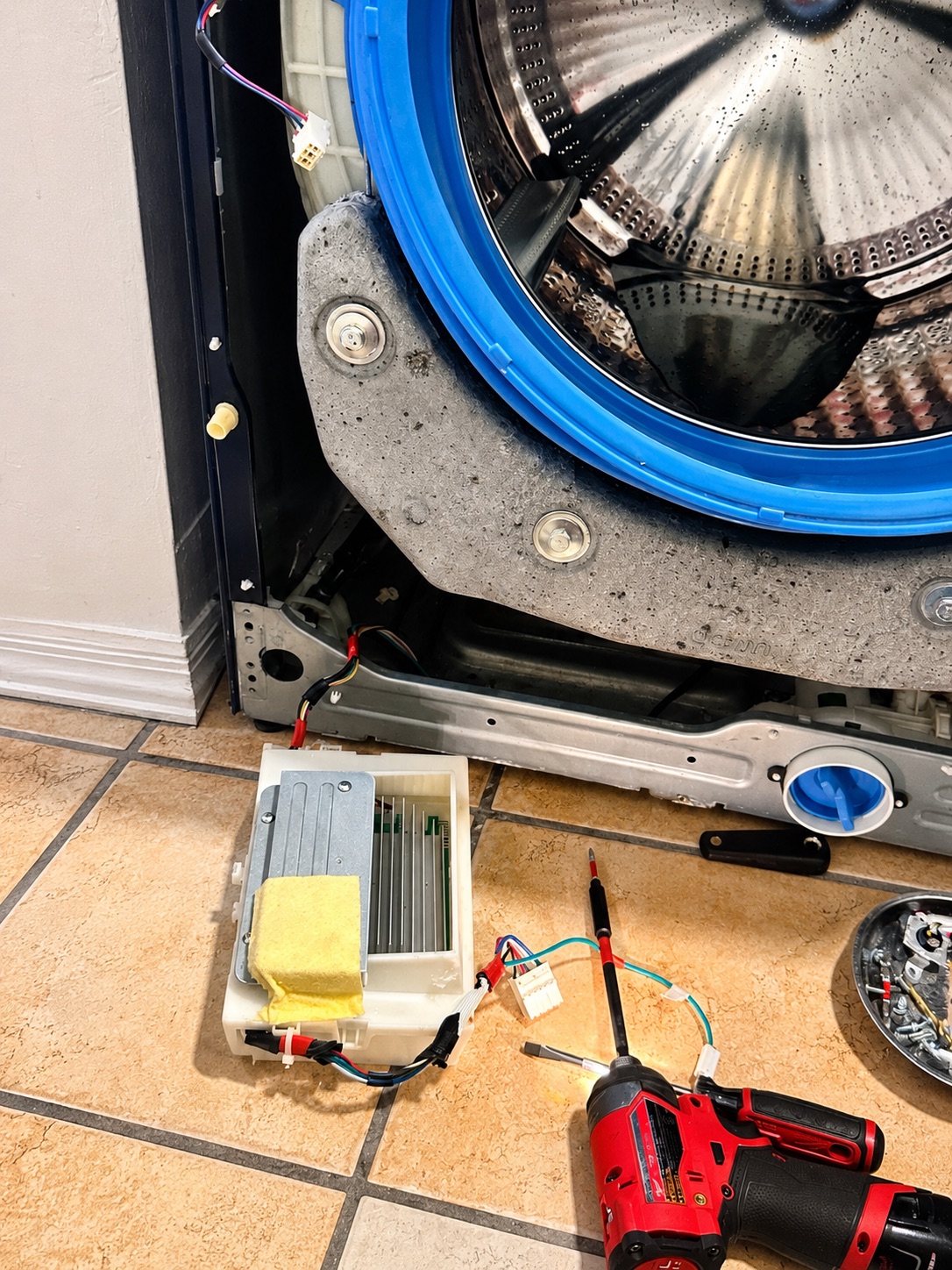

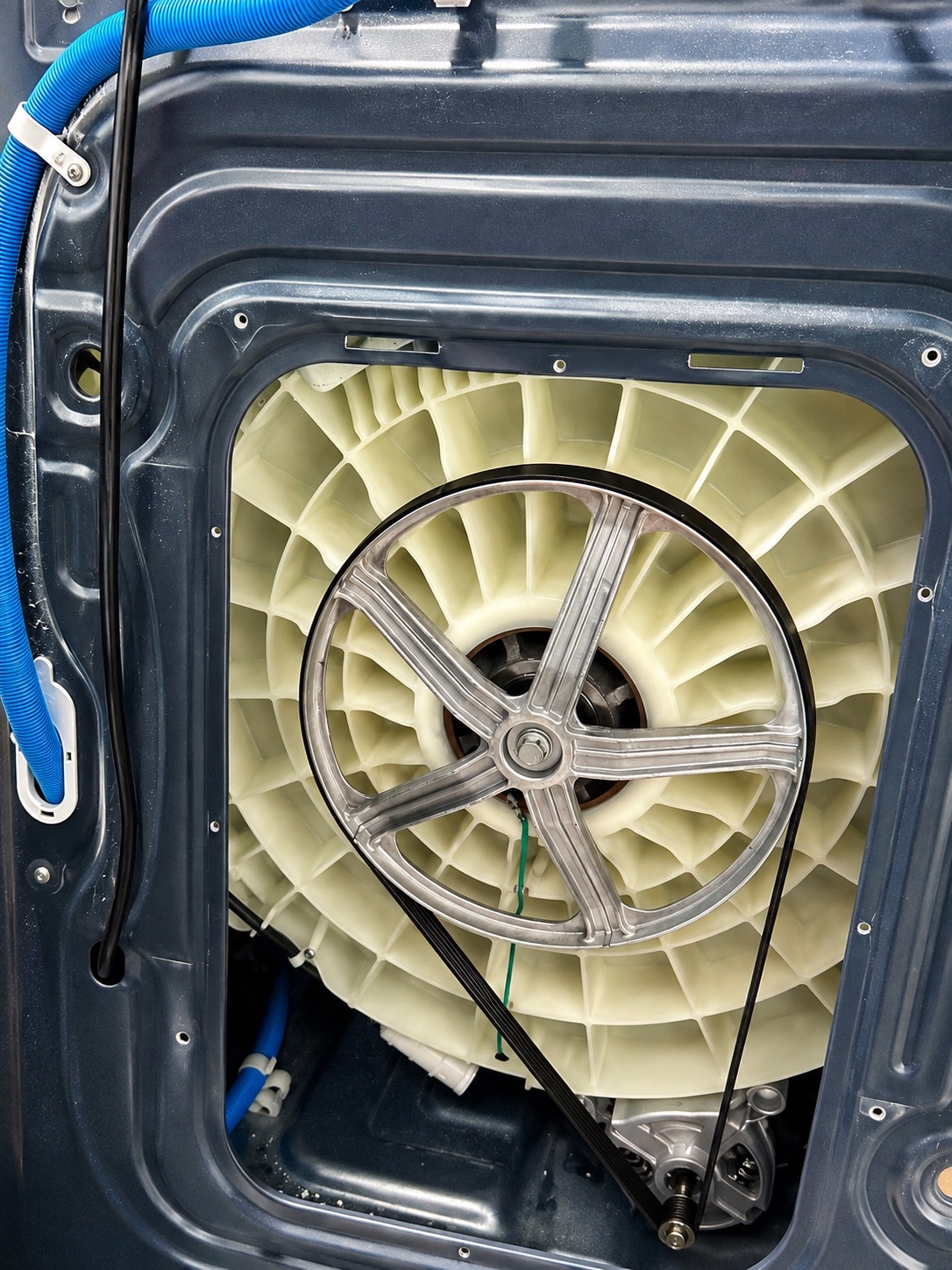

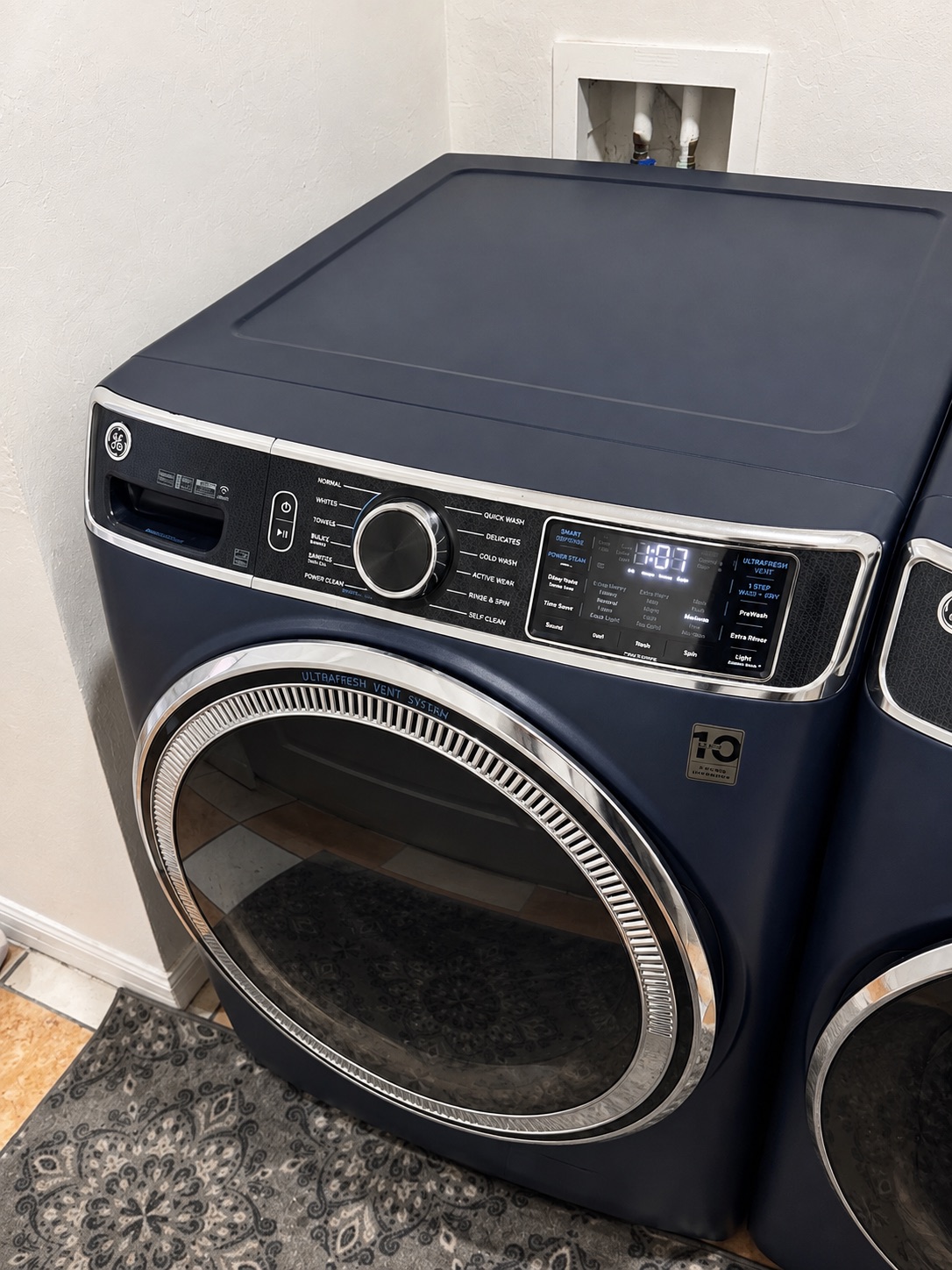

Inverter replacement · Cycle completed after testing
Repair
The failed inverter was replaced.
Result
After the inverter replacement, the washer operated normally and completed testing without the previous premature cycle termination.
Customer complaint
The washer stopped during a cycle with an error and the door remained locked. The homeowners drained the remaining water through the drain filter and were then able to open the door.
Diagnosis
During testing, the washer would run for only a few minutes, rotate the drum several times in both directions, and then end the cycle without progressing to a normal spin. The issue was traced to the inverter/motor control system.
Repair completed
The failed inverter was replaced.
Result
After the inverter replacement, the washer operated normally and completed testing without the previous premature cycle termination.

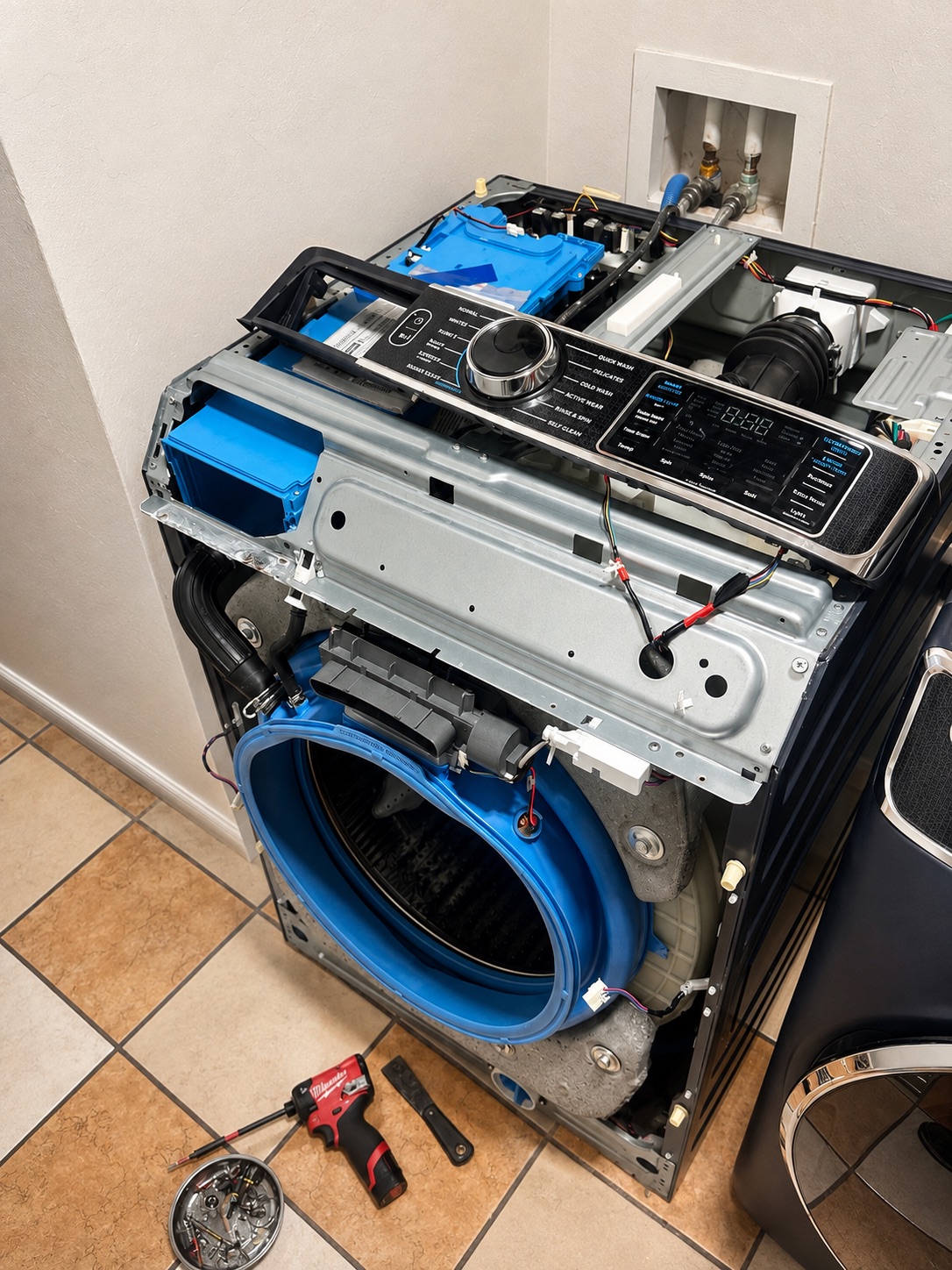

Washer Disassembled for DiagnosisInverter / Motor Control DiagnosisReplacement Inverter Fitted and Connected During Washer Repair
Bokeelia, FLWasherMaytag / MWWC360AW0Laundry room service callRepair Completed
Suspension replacement · Basket returned to position
Repair
The suspension assembly was replaced and the basket was returned to the correct position.
Result
After the suspension replacement, the washer started normally and completed testing without the previous issue.
Customer complaint
The washer would not begin the cycle, and the basket had shifted out of position.
Diagnosis
Inspection found worn suspension components that were no longer supporting and centering the basket correctly. The condition was consistent with repeated overloading.
Repair completed
The suspension assembly was replaced and the basket was returned to the correct position.
Result
After the suspension replacement, the washer started normally and completed testing without the previous issue.

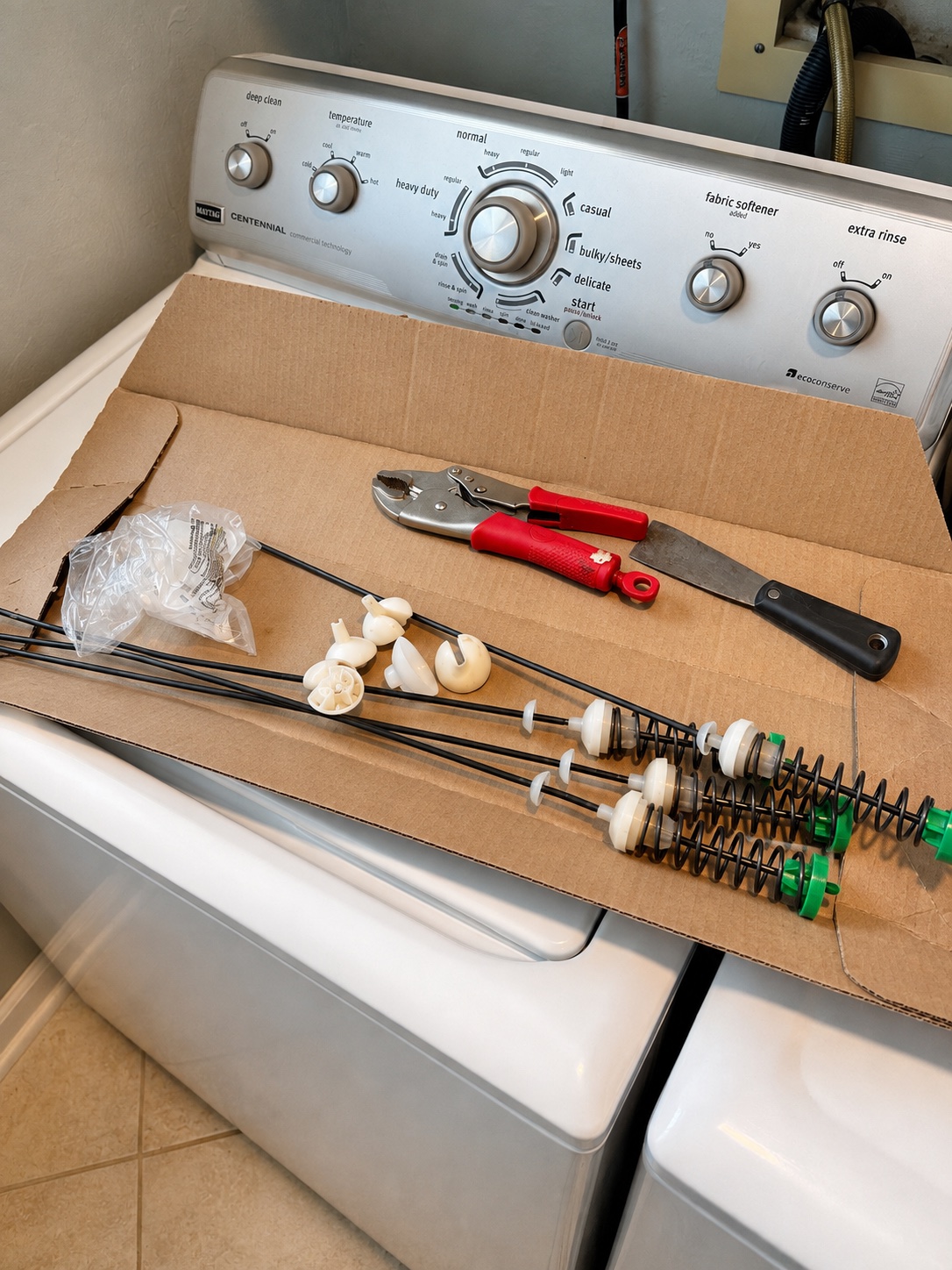

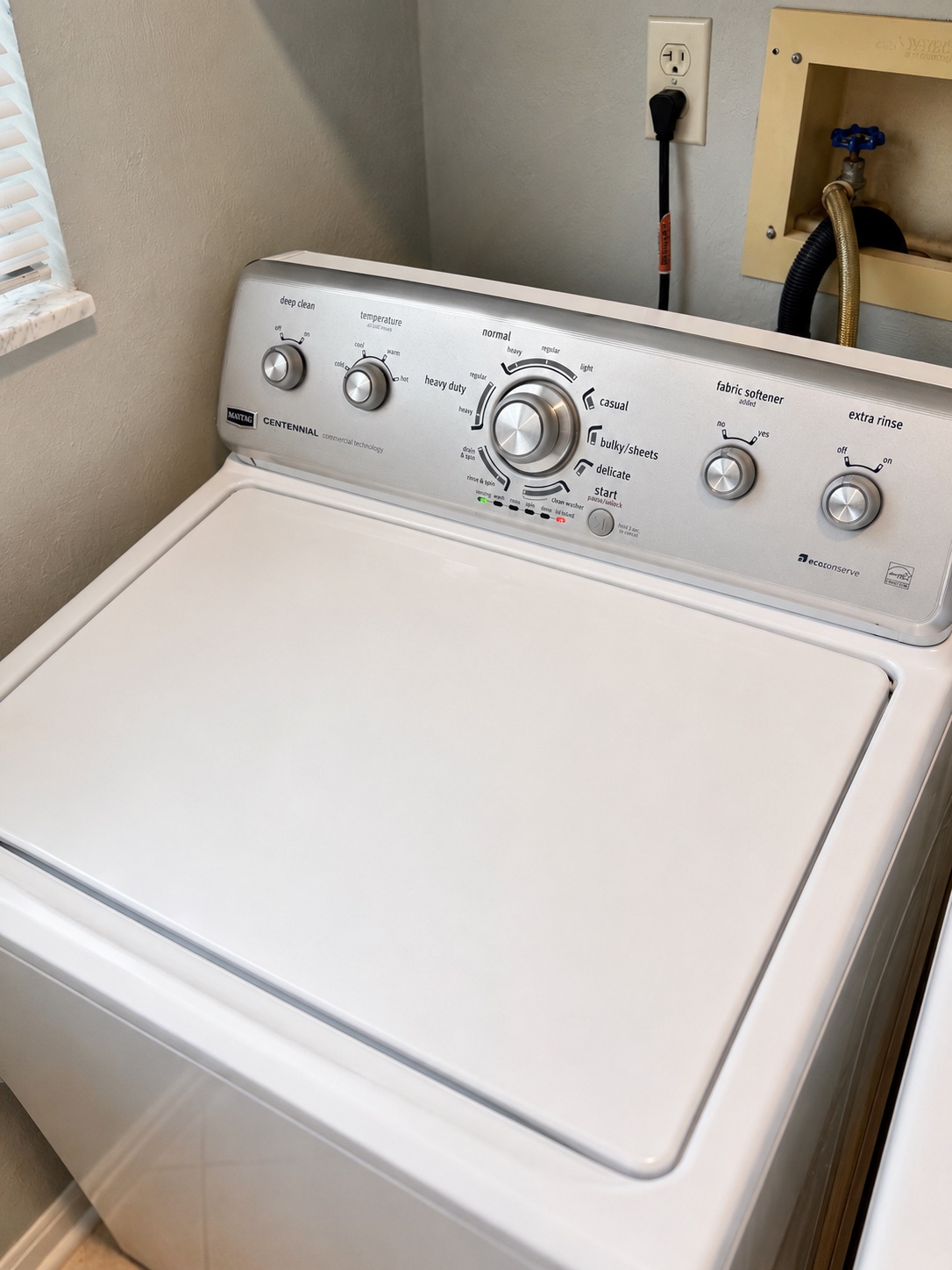

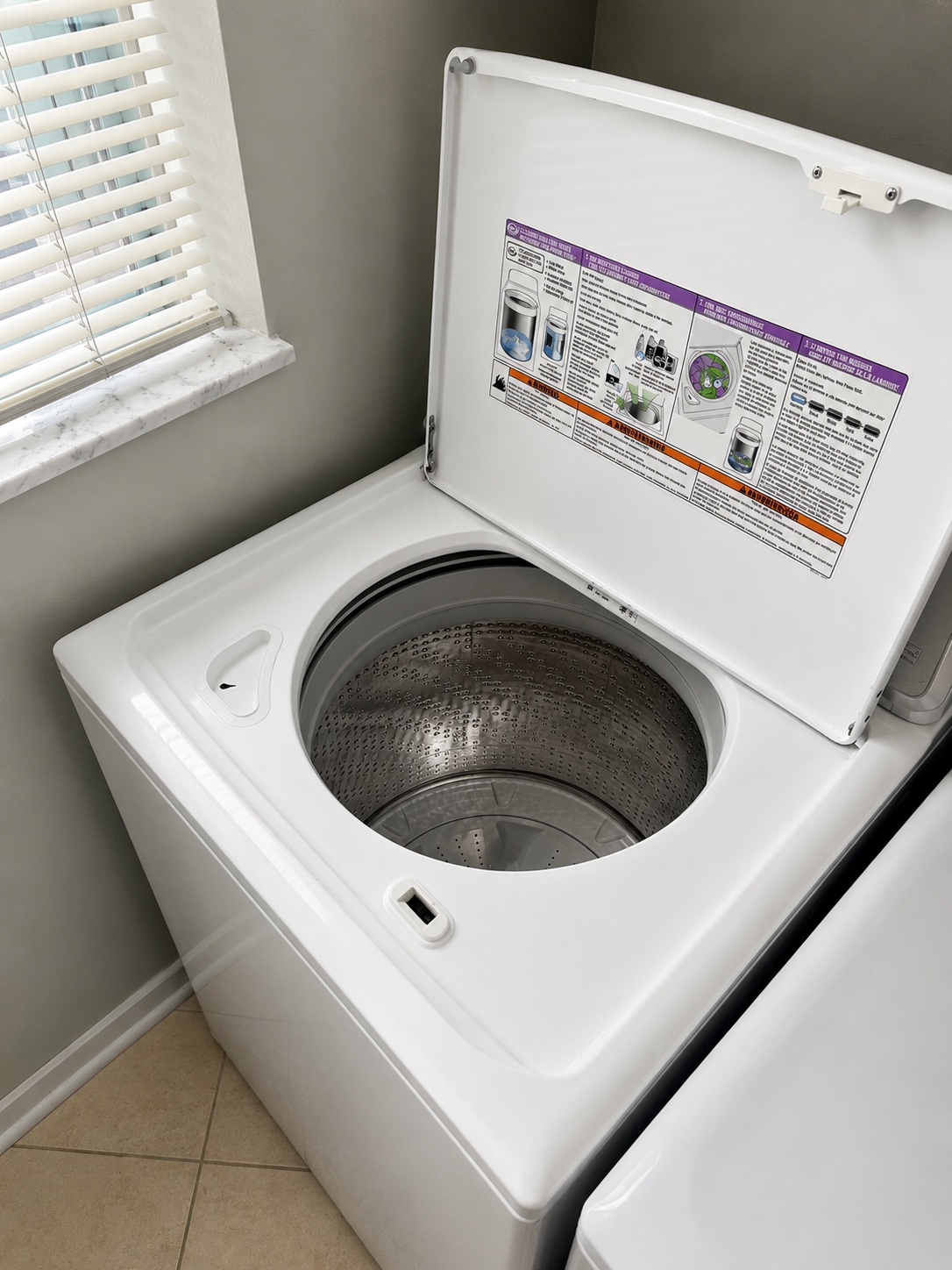

Worn Suspension ComponentsBasket After Suspension Repair

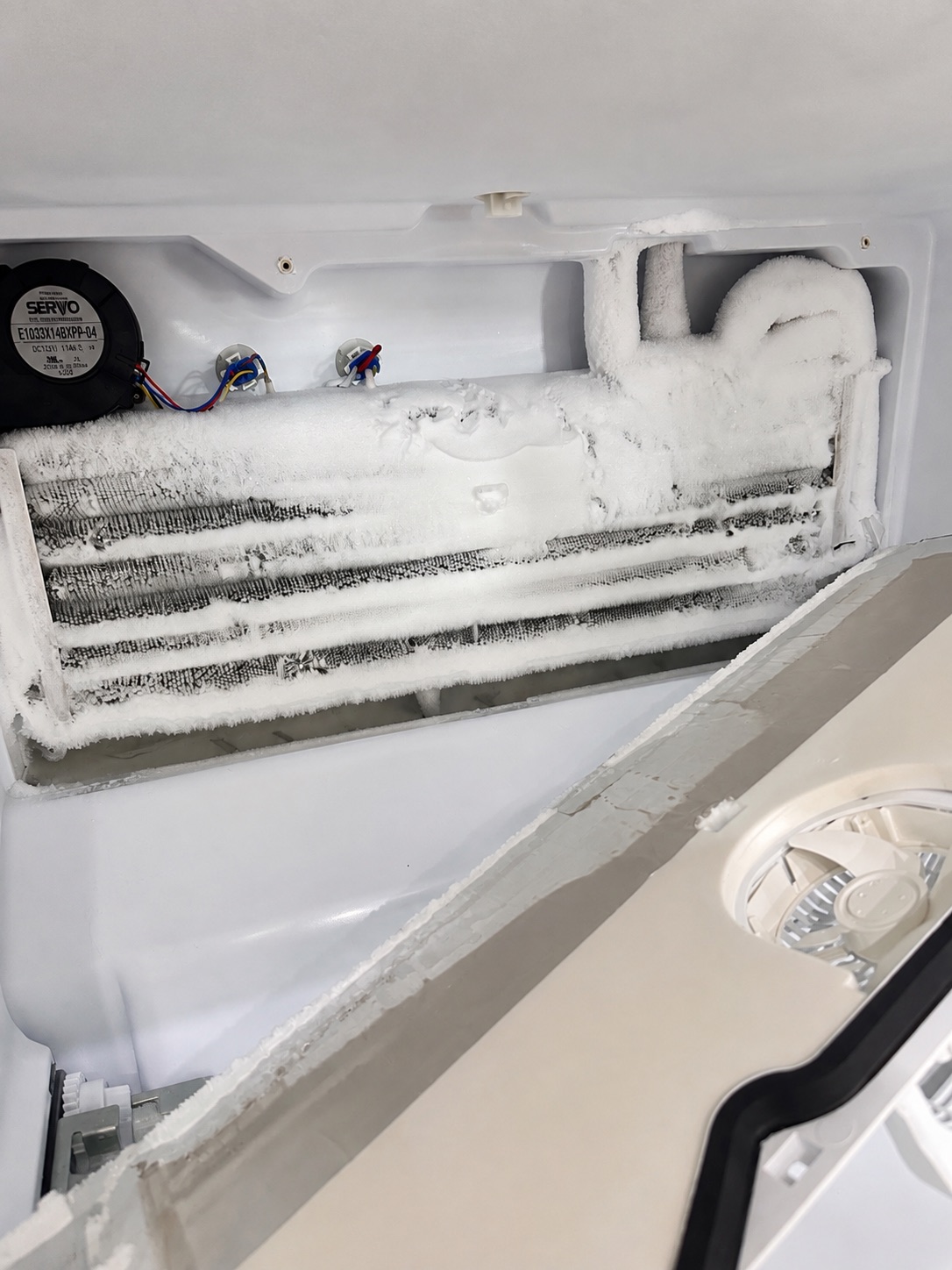

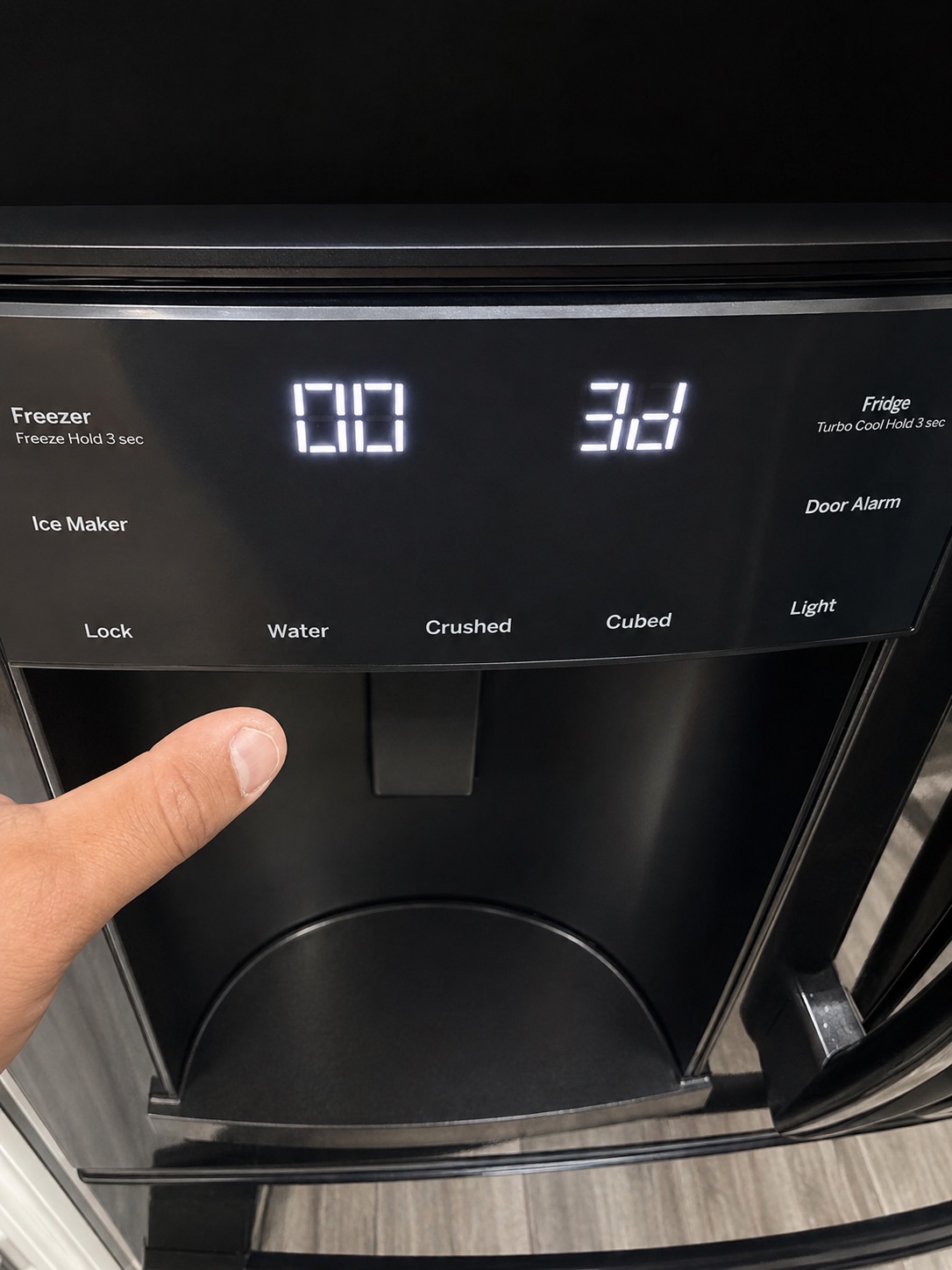

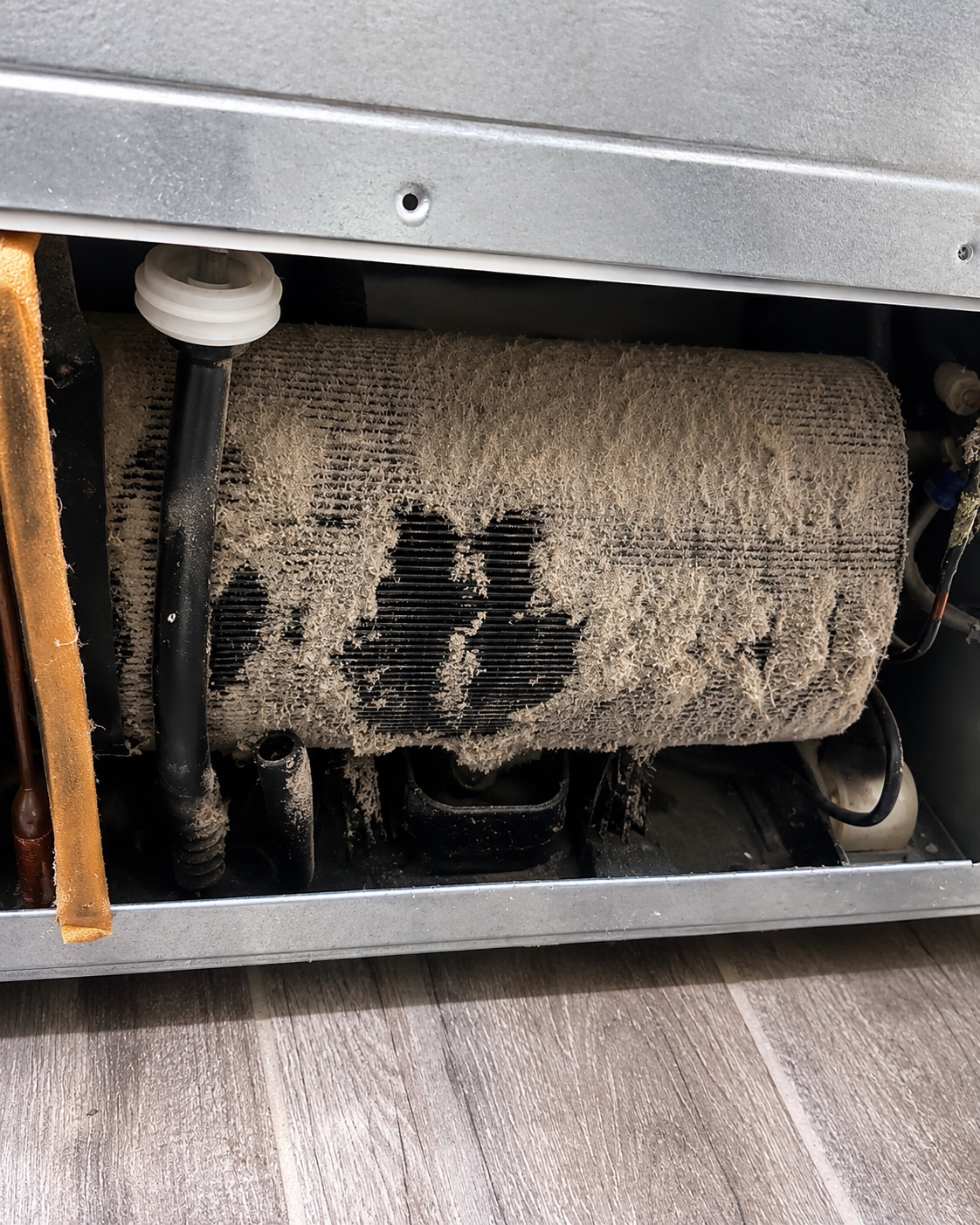

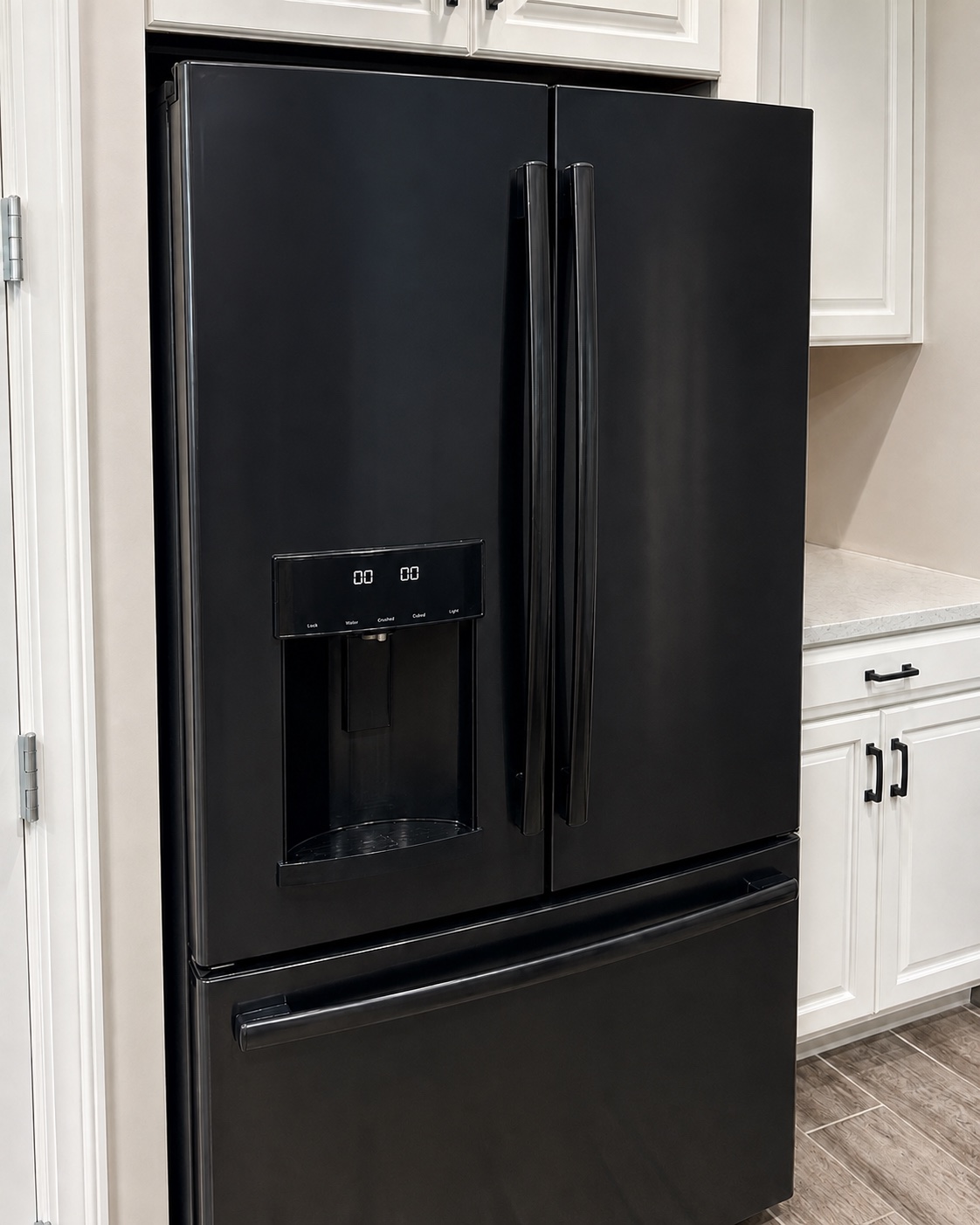

Fort Myers, FLRefrigeratorGE / GFE26GGKFBBKitchen refrigerator service callRepair Completed

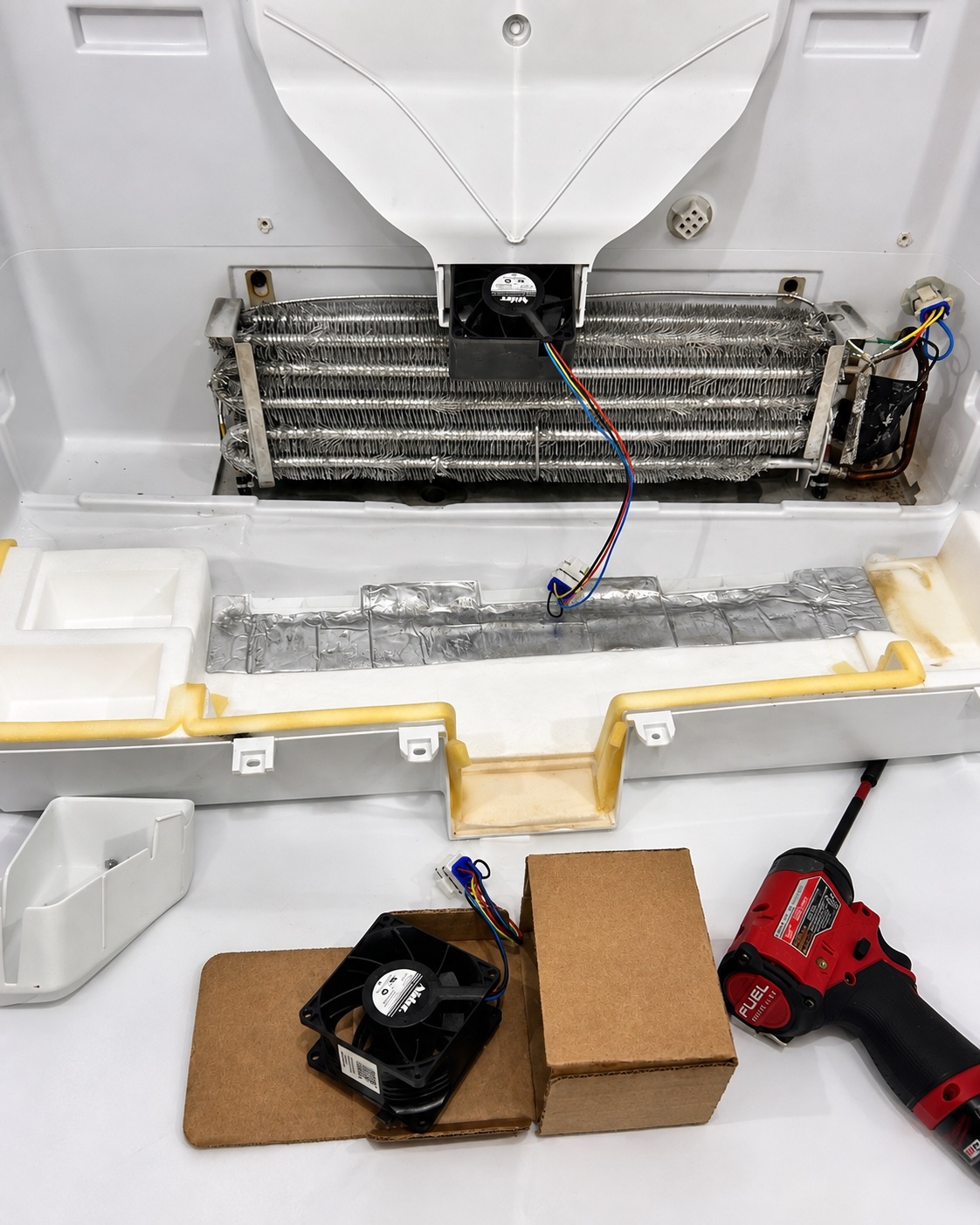

Evaporator airflow restriction · Fresh-food fan replacement
Repair
The evaporator area was thoroughly cleaned to restore proper airflow, and the failed fresh-food fan was replaced.
Result
After the evaporator was cleaned, freezer temperature returned to the normal range. Replacing the failed fan restored airflow and cooling in the fresh-food compartment.
Customer complaint
The freezer was not maintaining proper temperature, and the fresh-food section was not cooling correctly.
Diagnosis
Diagnostic testing showed inconsistent fan operation. The evaporator fan operated during a forced test, but the evaporator area was heavily restricted by accumulated dust and debris. The fresh-food compartment fan was also found not operating.
Repair completed
The evaporator area was thoroughly cleaned to restore proper airflow, and the failed fresh-food fan was replaced.
Result
After the evaporator was cleaned, freezer temperature returned to the normal range. Replacing the failed fan restored airflow and cooling in the fresh-food compartment.

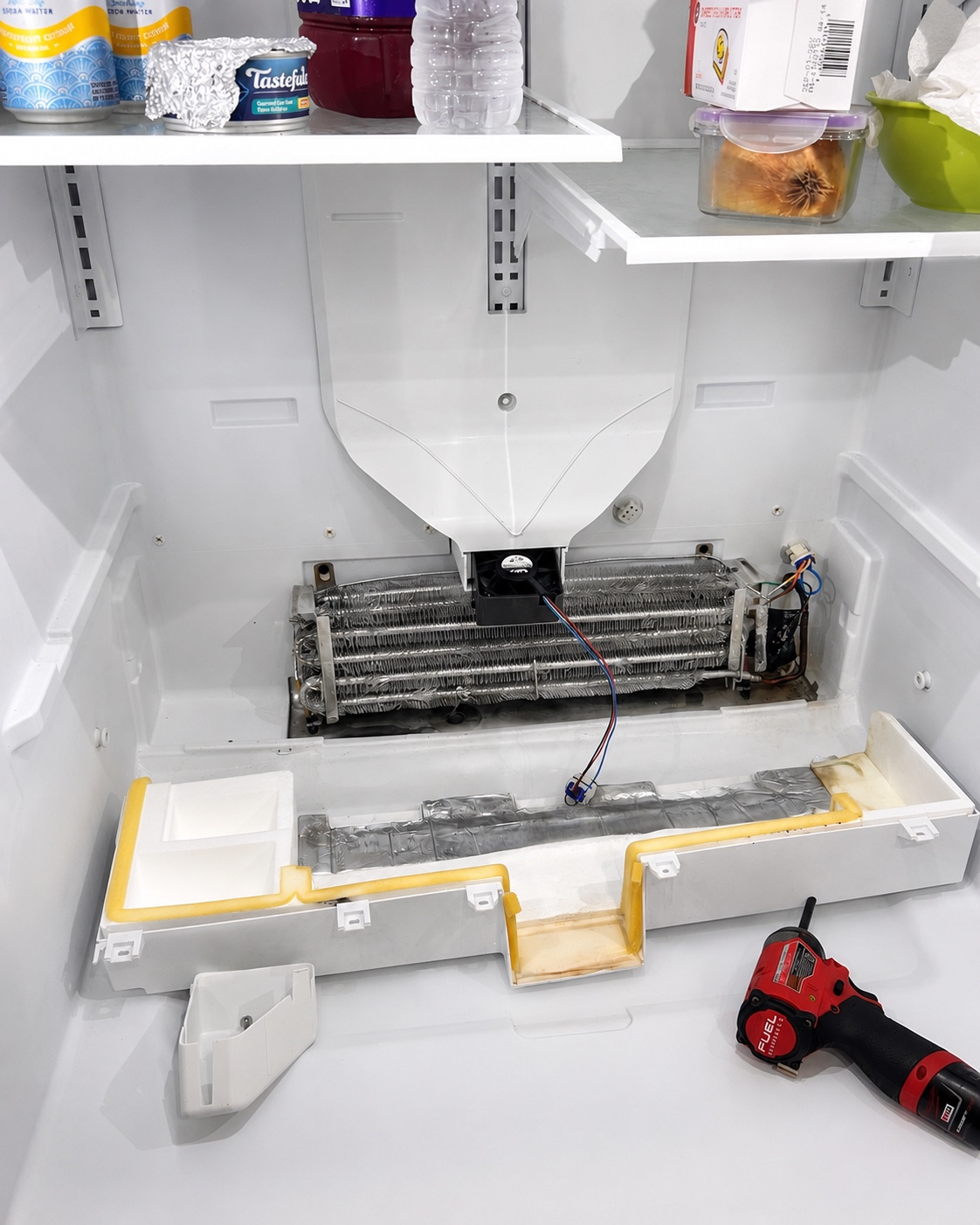

Diagnosis / Restricted Evaporator AirflowEvaporator Area After CleaningReplacement Fresh-Food Fan

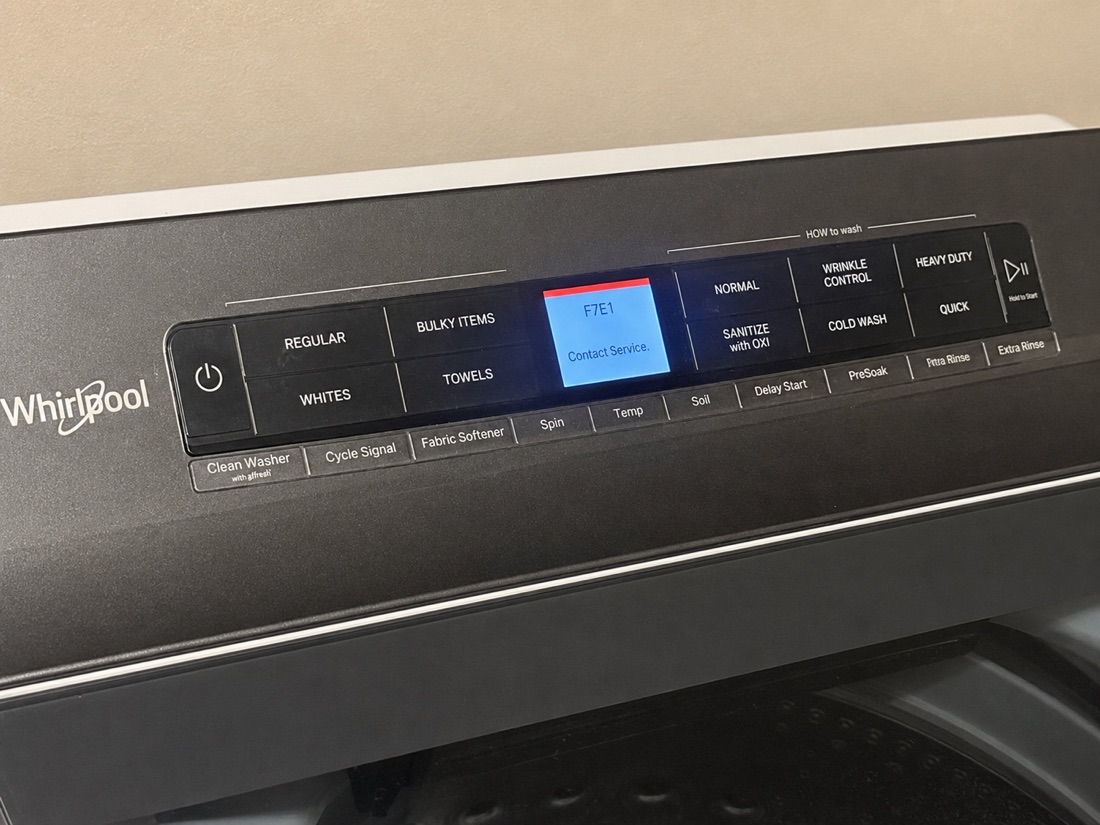

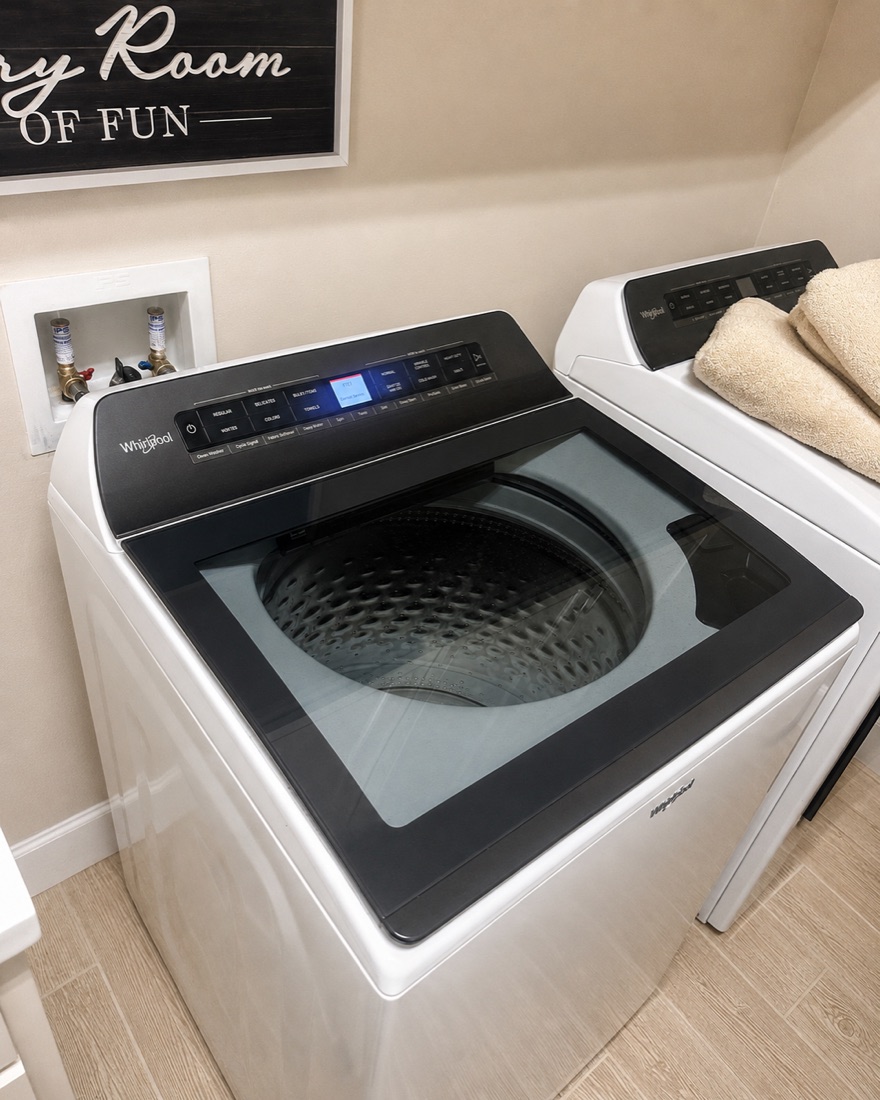

Estero, FLWasherWhirlpool / WTW5100HW2Laundry room service callRepair Completed

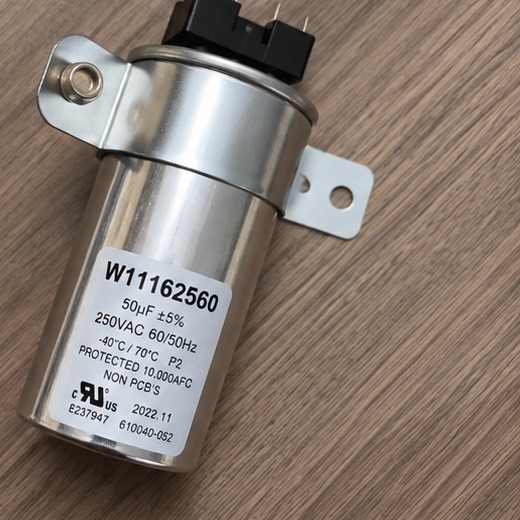

The motor/run capacitor was replaced with part W11162560, rated at 50 µF.
Result
After the capacitor replacement, the washer started and operated normally during testing, and the F7E1 error did not return.
Customer complaint
The customer reported that the washer had previously stopped during the spin cycle and displayed an F7E1 error. During the service call, the washer would not begin the cycle normally—the motor hummed, water did not begin filling, and the F7E1 error appeared.
Diagnosis
Testing identified a failed motor/run capacitor that was preventing the drive system from starting correctly.
Repair completed
The motor/run capacitor was replaced with part W11162560, rated at 50 µF.
Result
After the capacitor replacement, the washer started and operated normally during testing, and the F7E1 error did not return.

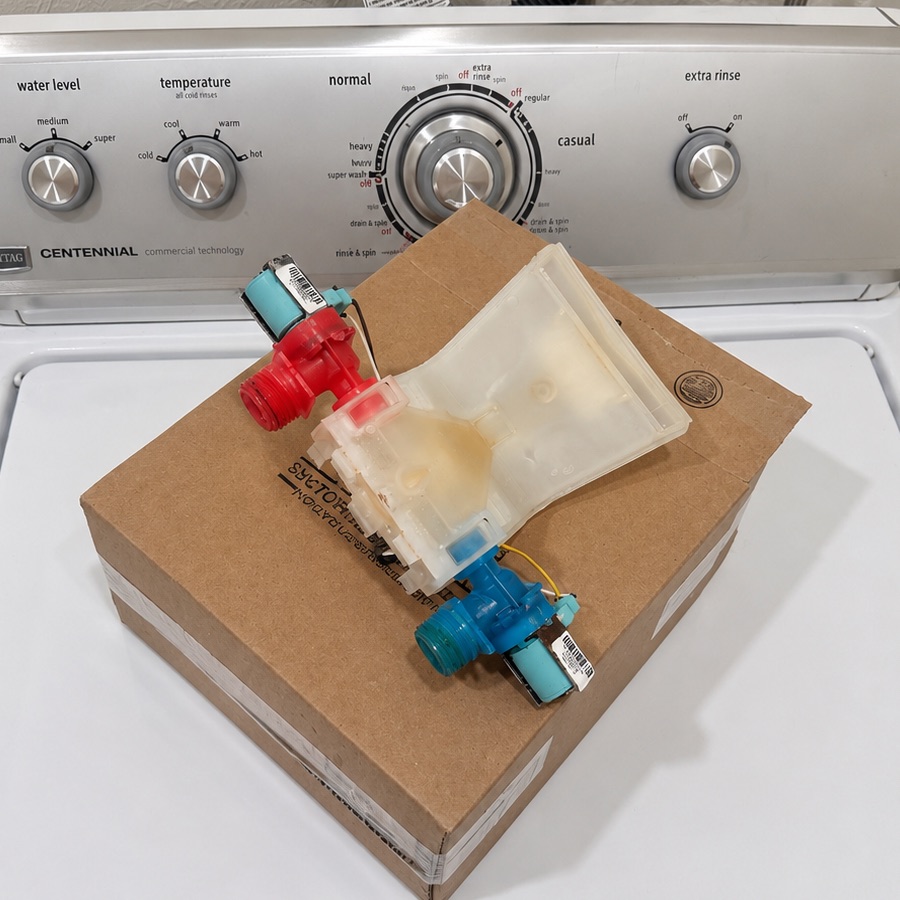

Washer water inlet valve assembly replaced. Refrigerator compressor start relay replaced; follow-up electrical inspection recommended before additional refrigerator repairs.
Result
The washer was checked to confirm the unwanted water entry had stopped. The refrigerator began operating again after the relay replacement, then later developed an additional electrical failure that required follow-up.
Service call
Two appliances were serviced during the same Cape Coral visit.

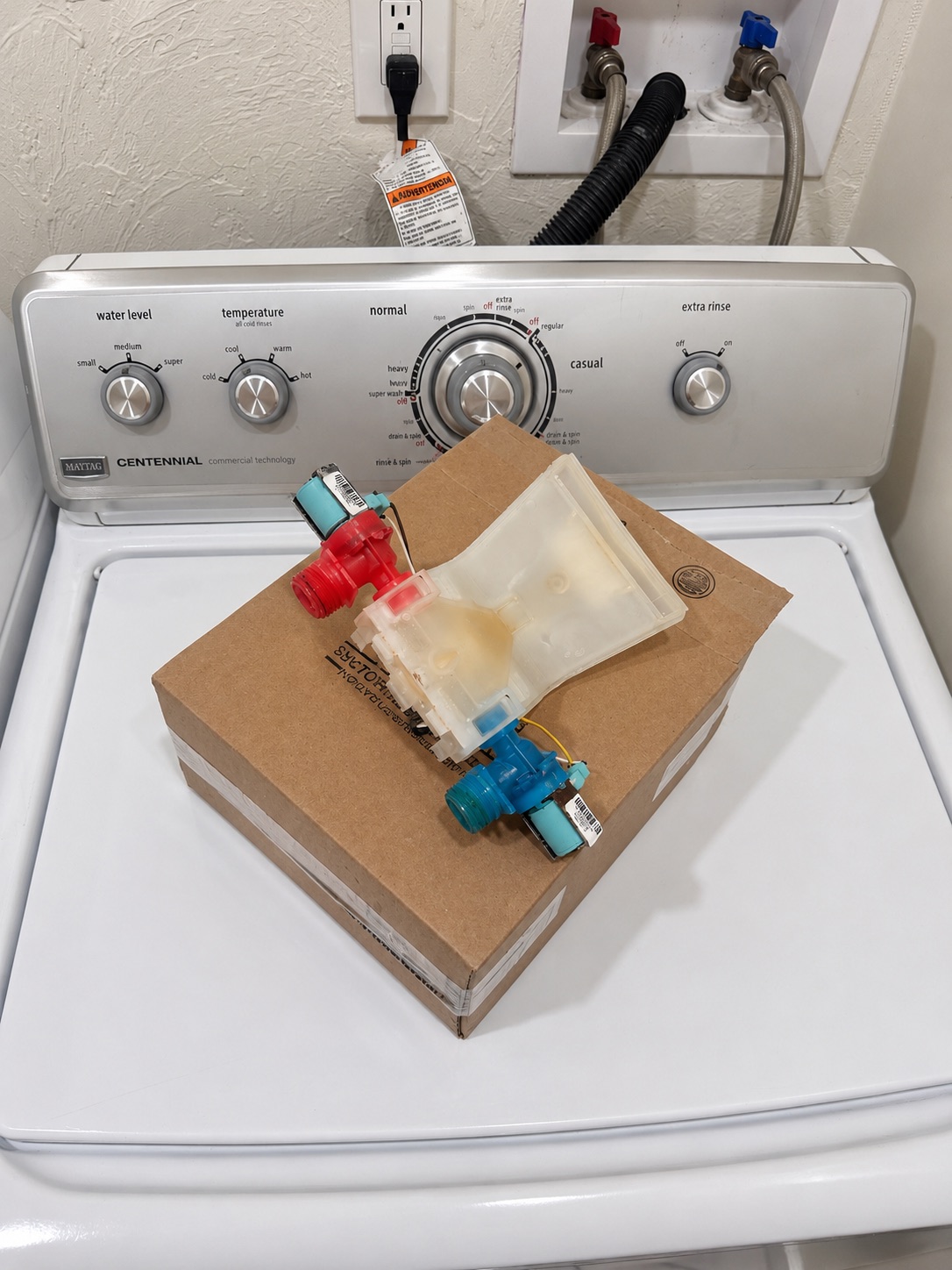

Maytag Washer MWWC300VW1
Water was accumulating inside the washer while it was not in use. Diagnosis found a leaking water inlet valve assembly. The valve assembly was replaced, and the washer was checked to confirm that the unwanted water entry had stopped.

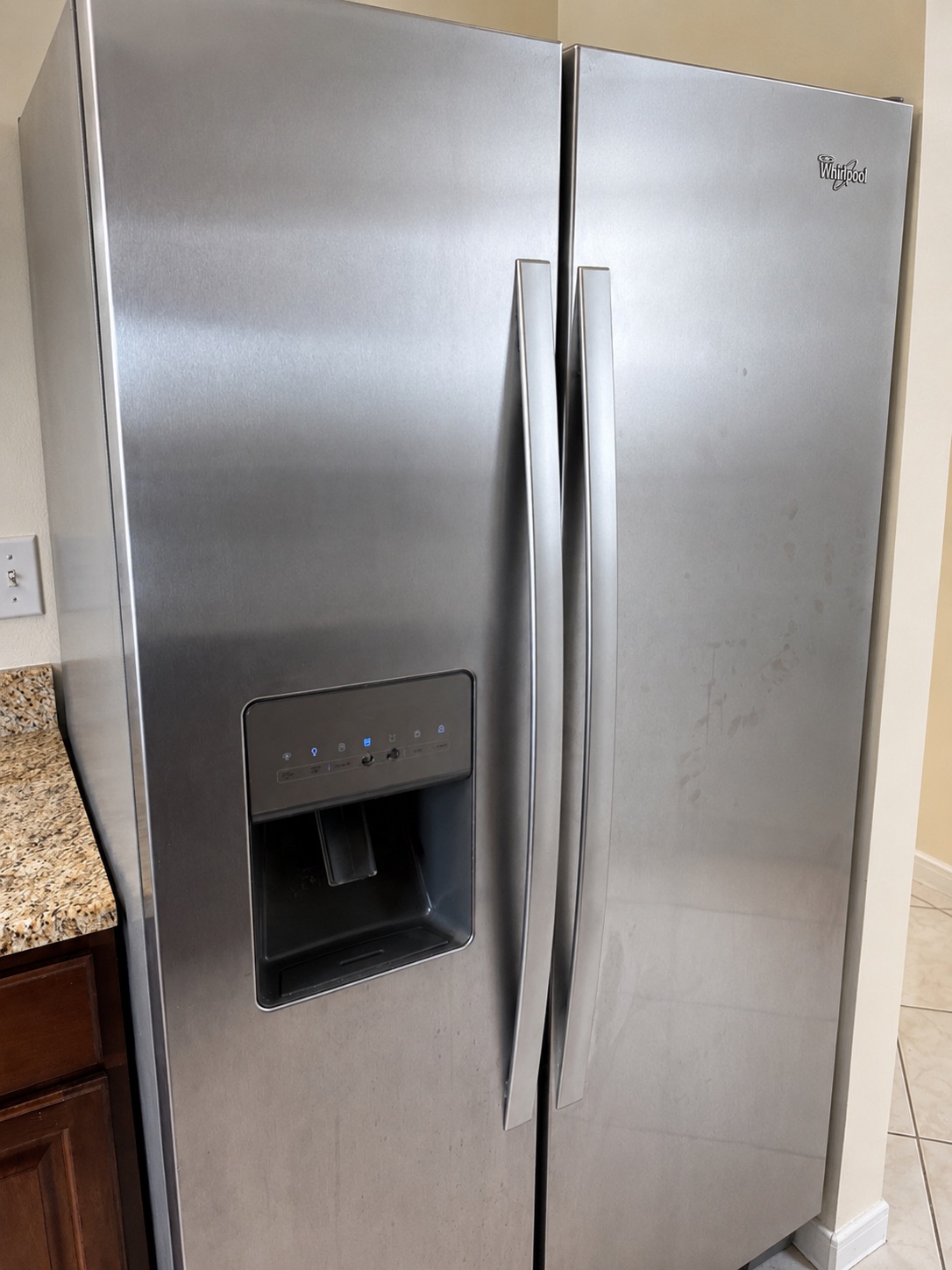

Whirlpool Refrigerator WRS325FDAM02

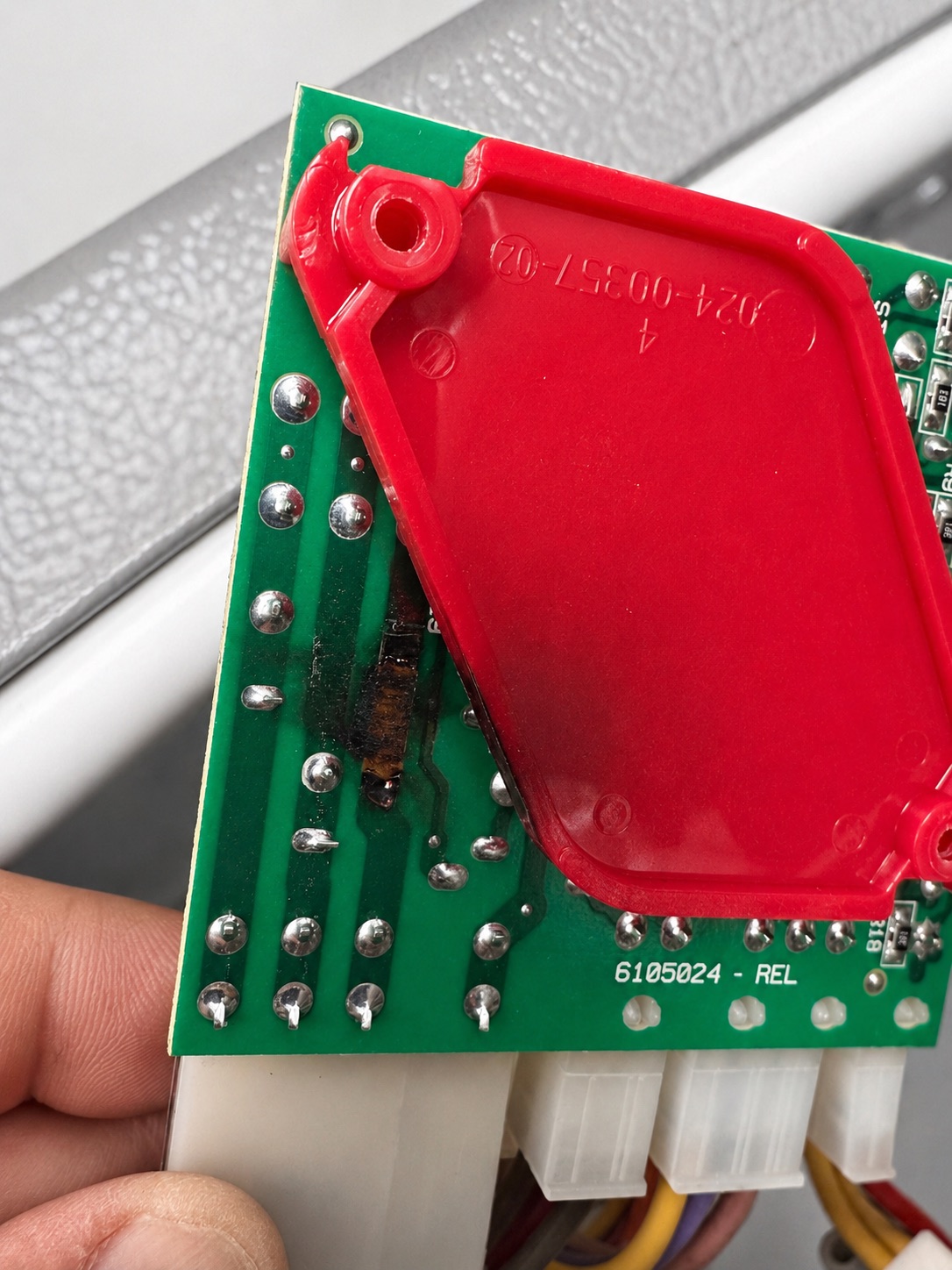

The refrigerator compressor was not starting. The compressor start circuit was inspected, the failed start relay was replaced, and the refrigerator began operating again.
Follow-up
Approximately two days later, an additional electrical failure occurred and visible burn damage was found on the refrigerator control board. Unstable household voltage or a power surge was considered a possible contributing factor. The homeowner was advised to have the electrical supply inspected by a qualified electrician before additional refrigerator repairs are performed.
PartApplianceFailed Part / DiagnosisDiagnosis / Repair Process
Cape Coral, FLRefrigeratorWhirlpool / French-door refrigerator, full model number withheldSingle-family kitchen

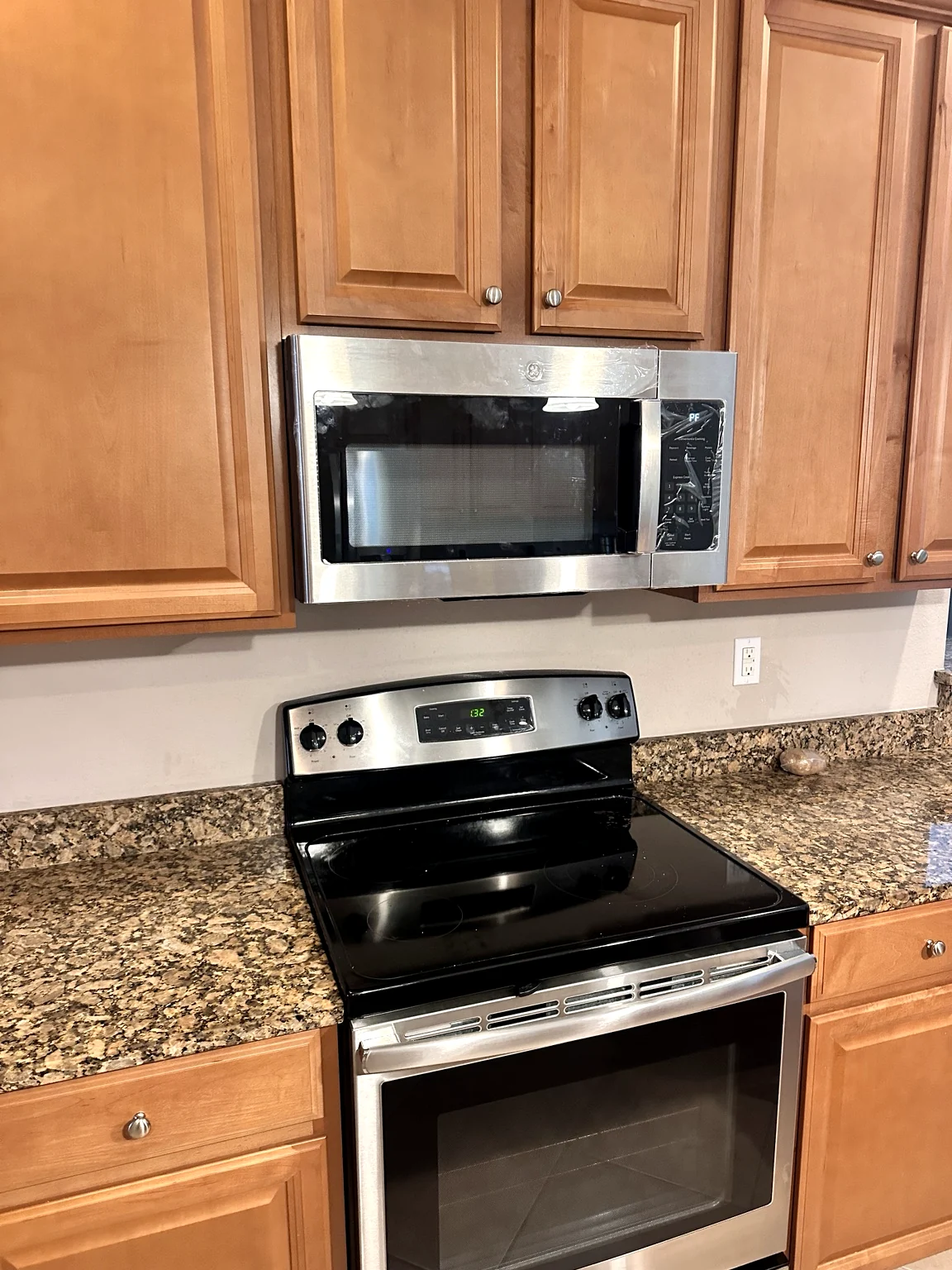

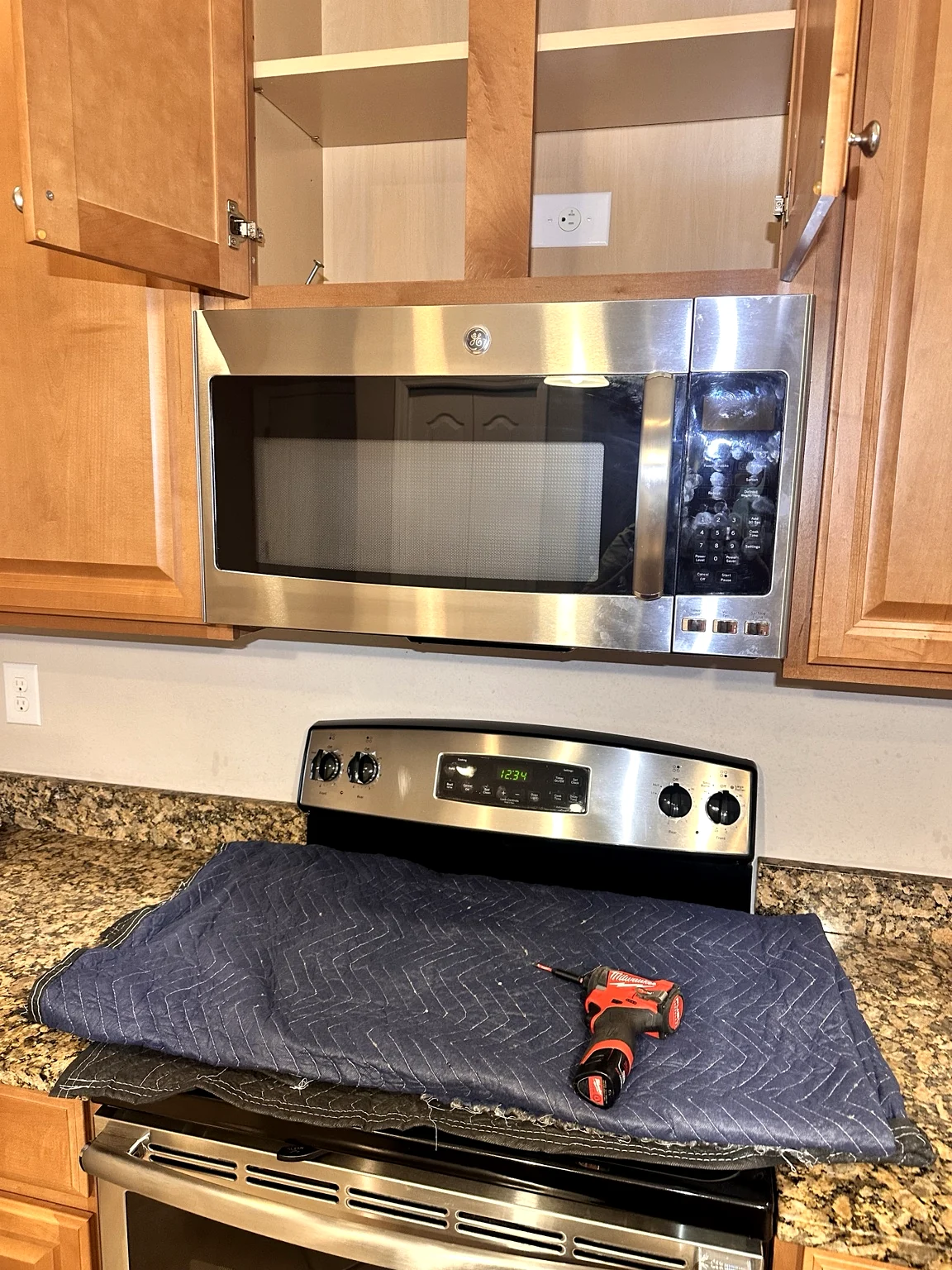

GE Over-the-range microwave, model number withheld
Repair
High-voltage diode path reviewed after safety checks.
Result
No-heat condition was confirmed, repair-versus-replace guidance was given, and unsafe DIY testing was discouraged.
Brand
GE
Model
Over-the-range microwave, model number withheld
Complaint
Microwave light, fan, and turntable worked, but food did not heat.
Diagnosis
Door-switch operation and control response were checked first; high-voltage diagnosis was handled with safety precautions.
Replaced part / repair path
High-voltage diode path reviewed after safety checks.
Result
No-heat condition was confirmed, repair-versus-replace guidance was given, and unsafe DIY testing was discouraged.
